C5141-.125D4R020.0Z4 SIRA
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.02″ RE ; 0.02″ RE ; 4 FL ; Carbide ; SIRON-A ; Series C5141

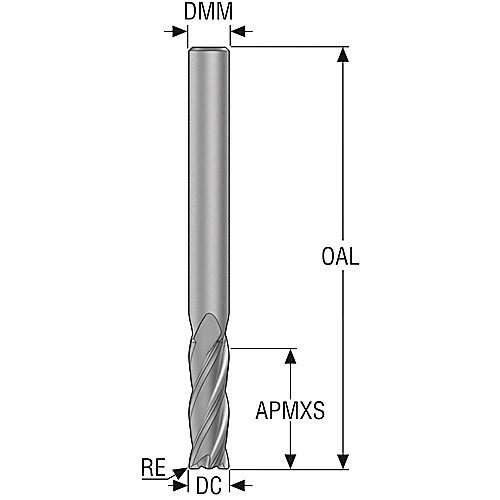

| Cutting Diameter (DC) | 1/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | SIRON-A | Series/List # | C5141 |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
