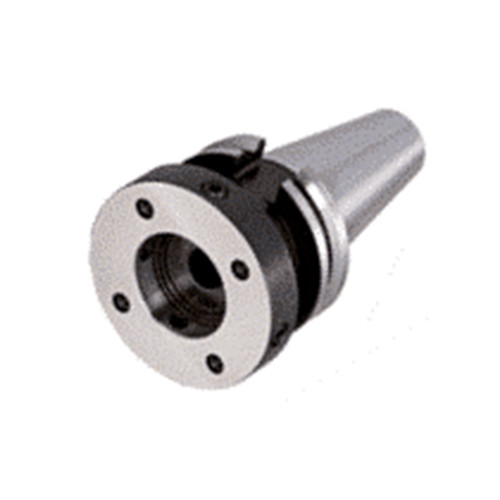

ADJ DIN69871 50 D70
Adapter; 50 mm Shank Dia. ; 35 mm Hole Dia. ; 50 Shank Size ; 50 mm LPR ; 70 mm Body Dia. ; 30.9 mm Body Length ; 151.75 mm OAL

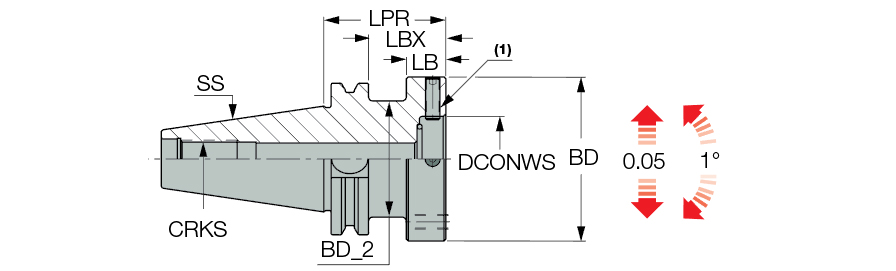

| Protruding Length (LPR) | 50 mm | Weight of Item (WT) | 3.32 Kg |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 35 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Diameter (BD) | 70 mm | Shank Length (LS) | 101.8 mm |
| Body Length (LB) | 30.9 mm | Flange Diameter (DF) | 97.5 mm |
| Shank Size (SS) | 50 | Overall Length (OAL) | 151.75 mm |
| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | DIN69871 |
| Measurement Type | Metric |
Product Features
| Family Description | Center alignment shank and base with a DIN 69871 Form AD Taper Shank (Used for specially tailored tool holders). | Country of Origin | Germany |
| Remarks | (1) Use 4 mm hex key for screw adjustment. |
