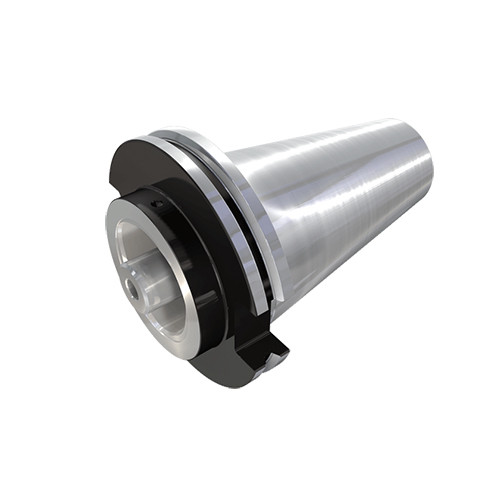

C8 AD SKA 50X70

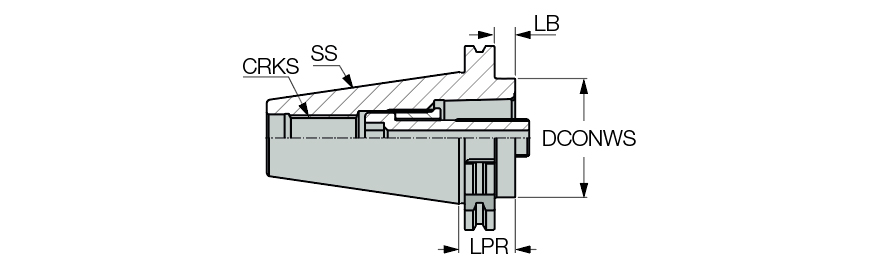

Adapter; 50 mm Shank Dia. ; 80 mm Hole Dia. ; 50 Shank Size ; 70 mm LPR ; 171.75 mm OAL
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 80 mm | Shank Length (LS) | 101.8 mm |
| Shank Size (SS) | 50 | Flange Diameter (DF) | 97.5 mm |
| Tool Type | DIN 69871 | Overall Length (OAL) | 171.75 mm |
| Measurement Type | Metric | Connection Code Machine Side (CCMS) | DIN69871 |
| Weight of Item (WT) | 3.77 Kg |
Product Features
| Family Description | CAMFIX (ISO 26623-1) holders with DIN 69871 form AD tapered shanks | Country of Origin | Italy |
Shipping Info
Package Weight
9.046
