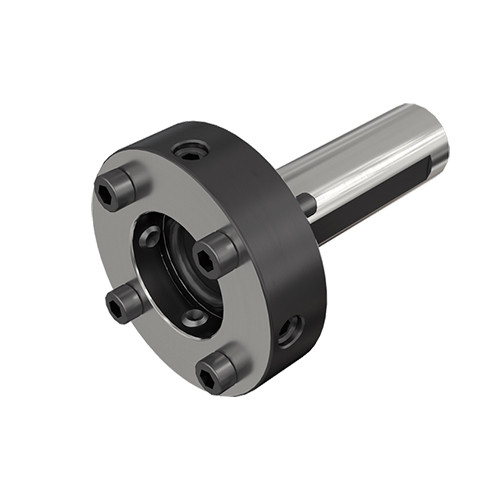

ADJ ST32 D70

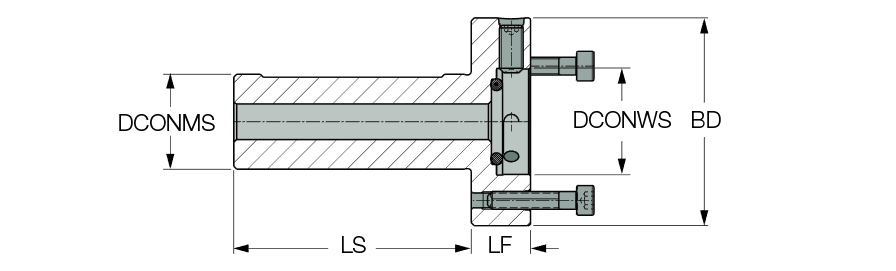

Adapter; 32 mm Shank Dia. ; 35 mm Hole Dia. ; 32 Shank Size ; 20 mm LPR ; 70 mm Body Dia. ; 100 mm OAL
| Protruding Length (LPR) | 20 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Weight of Item (WT) | 0.89 Kg |
| Connection Diameter Workpiece Side (DCONWS) | 35 mm | Body Material | Steel |
| Body Diameter (BD) | 70 mm | Shank Length (LS) | 80 mm |
| Shank Size (SS) | 32 | Overall Length (OAL) | 100 mm |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | Center alignment shank and base with cylindrical shanks with a clamping flat. Used for specially tailored toolholders. | Country of Origin | Israel |
Shipping Info
Package Weight
2.341
