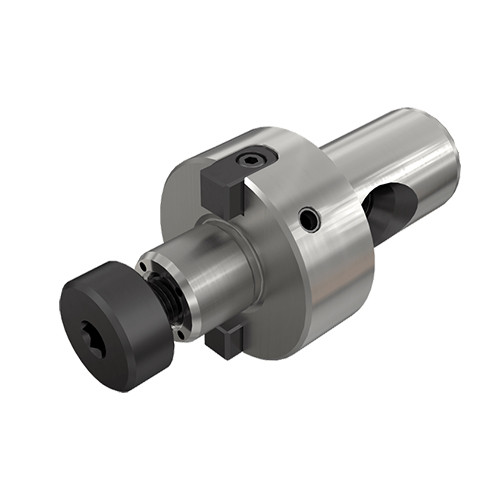

SEM 1 CF4 C
Adapter; 0.984″ Shank Dia. ; CF4 Shank Size ; 1″ LPR ; 2.126″ Body Dia. ; 3.319″ OAL

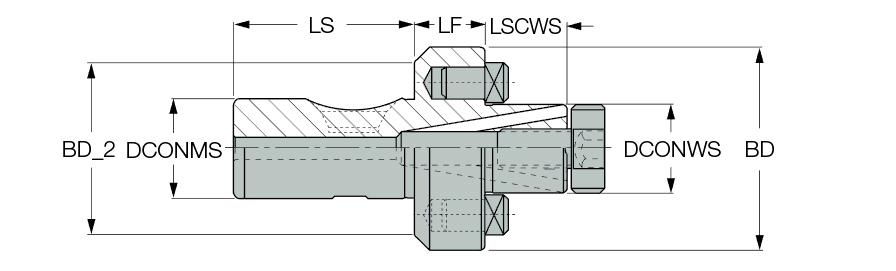

| Protruding Length (LPR) | 1″ | Tool Type | Quick Change Milling Adaptation |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Weight of Item (WT) | 1.26 Lbs |
| Clamping Length Workpiece Side (LSCWS) | 0.669″ | Body Material | Steel |
| Body Diameter (BD) | 2.126″ | Body Diameter_2 (BD_2) | 1.732″ |
| Shank Size (SS) | CF4 | Shank Length (LS) | 1.65″ |
| Coolant Supply Property (CSP) | Through Hole | Overall Length (OAL) | 3.319″ |
Product Features
| Family Description | DIN 3937 shell mill holder with a CLICKFIT quick change adaptation and coolant holes. | Country of Origin | Israel |
| Remarks | Tightening torque: 44 Lbs x ft. For Adaptation Click on More Info. |
