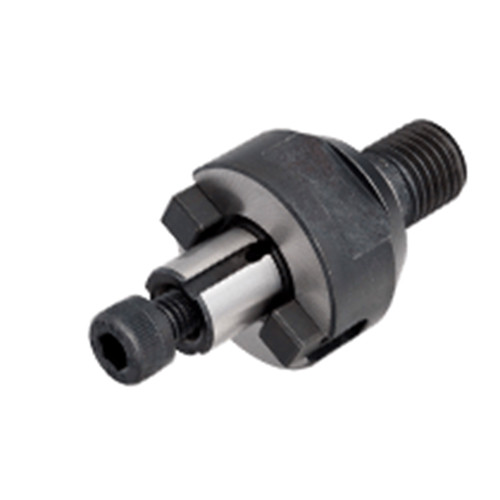

CAB M16 SEM 1/2 C
Adapter; 1.142″ Shank Dia. ; 1/2″ Hole Dia. ; 0.929″ LPR ; 1.378″ Body Dia. ; 0.571″ Body Length ; 2.484″ OAL

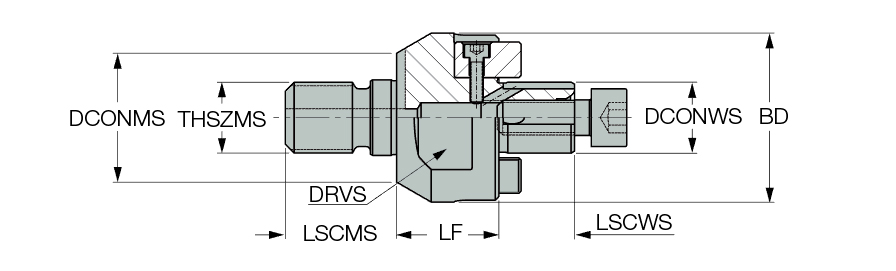

| Protruding Length (LPR) | 0.929″ | Tool Type | Interchangeable Milling Connectors |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Weight of Item (WT) | 0.4 Lbs |
| Clamping Length Workpiece Side (LSCWS) | 0.571″ | Body Material | Steel |
| Body Diameter (BD) | 1.378″ | Body Diameter_2 (BD_2) | 1.142″ |
| Body Length (LB) | 0.571″ | Overall Length (OAL) | 2.484″ |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | FLEXFIT shell mill holder adaptation with coolant holes. | Country of Origin | Italy |

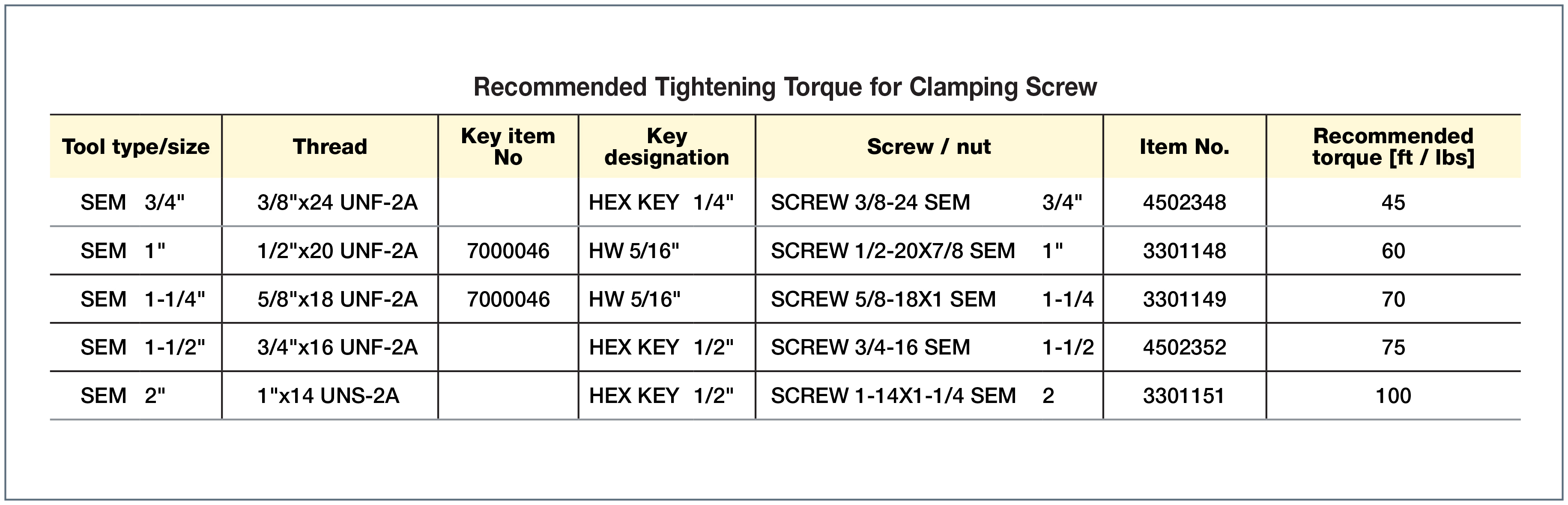

| Remarks | When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.485
