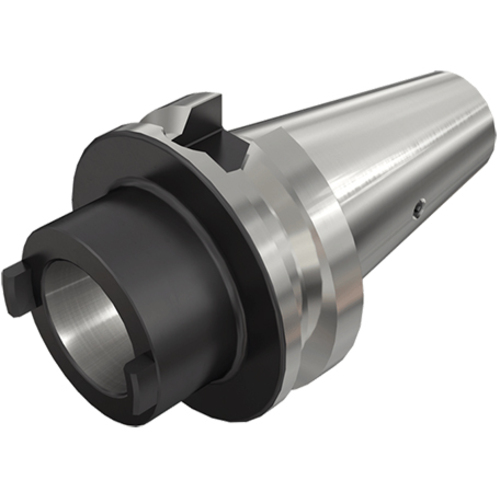

BT50 AD BT/SK40

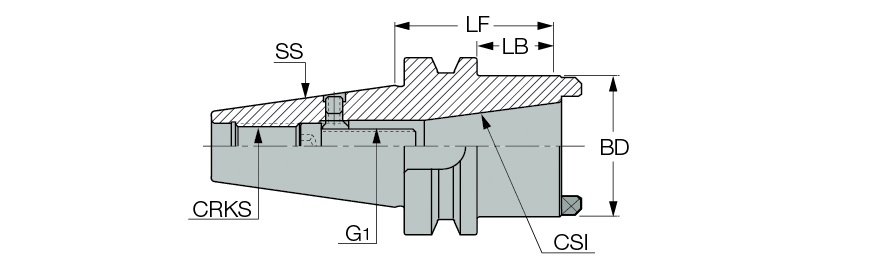

Adapter; ; 50 Shank Size ; 75 mm LPR ; 66 mm Body Dia. ; 37 mm Body Length ; 179.8 mm OAL
| Protruding Length (LPR) | 75 mm | Body Material | Steel |
| Body Diameter (BD) | 66 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Length (LB) | 37 mm | Shank Length (LS) | 101.8 mm |
| Shank Size (SS) | 50 | Flange Diameter (DF) | 100 mm |
| Tool Type | BT | Overall Length (OAL) | 179.8 mm |
| Measurement Type | Metric | Connection Code Machine Side (CCMS) | BT |
| Weight of Item (WT) | 4.05 Kg |
Product Features
| Family Description | DIN 2080 DIN 69871/A and BT MAS-403 adapters with BT MAS-403 A tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
9.180
