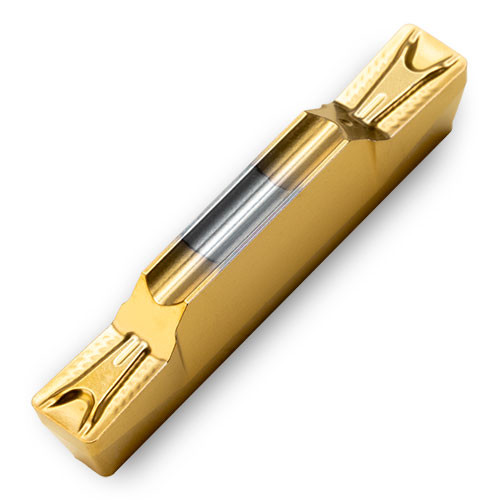

TDXY4E-0.4 TT9080
Grooving Insert; 0.157″ CW × 0.008″ Max Depth × 0.185″ Thickness
| Cutting Width (CW) | 0.157″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.016″ | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 0.008″ | Insert Seat Size Code (SSC) | 4 |
| Insert Thickness (S) | 0.185″ | Measurement Type | Inch |
| Insert Length (INSL) | 0.787″ | Min. Grooving Feed (fg(min)) | 0.003″ |
| Application | | Countersinking | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | Side Slotting | | Body Material | Carbide |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.011
