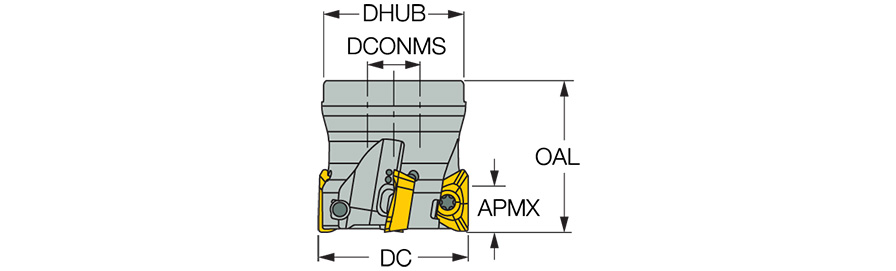

HM390 FTD D63-6-27-15-JHP
Indexable Face Mill; 63 mm Dia. × 27 mm Shank Dia. × 45 mm OAL × 13 mm LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | HM390 TDKT 1505 PDR |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 13 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 45 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 60 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
Product Features
| Family Description | 90° JHP face mill with pinpointed coolant outlets carrying HM390 triangular inserts with helical cutting edge | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than 2 mm, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info For adaptation, click on More Info |
Shipping Info
Package Weight
800
