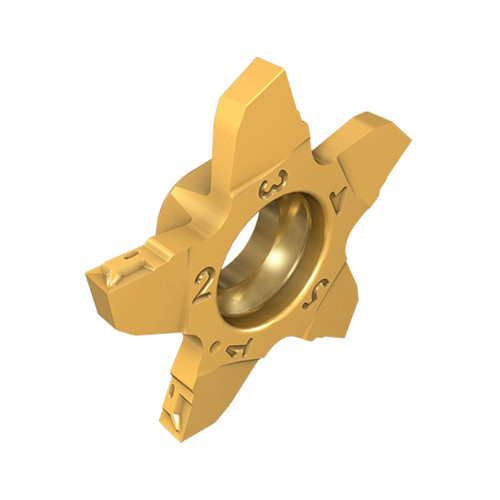

PENTA 17N150NX080RS IC1008
Parting Off Insert; 0.059″ CW × 0.0031″ Corner Radius ; Carbide ; TiAlN+TiN ; IC1008

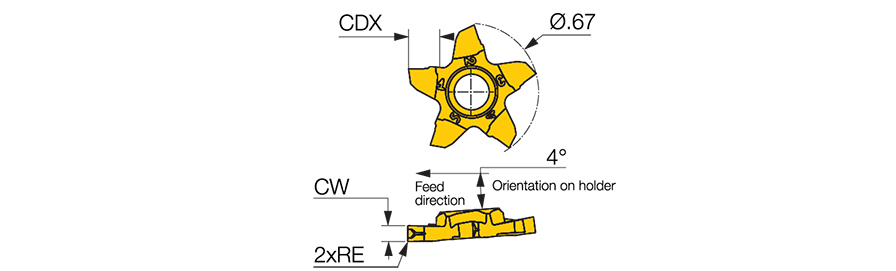

| Cutting Width (CW) | 0.059″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0031″ | Max. Grooving Feed (fg(max)) | 0.0027 ″/rev |
| Cutting Depth Maximum (CDX) | 0.157″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.138″ |
Product Features
| Family Description | Pentagonal inserts for precision grooving and parting off. Used for next to shoulder applications. | Country of Origin | Israel |

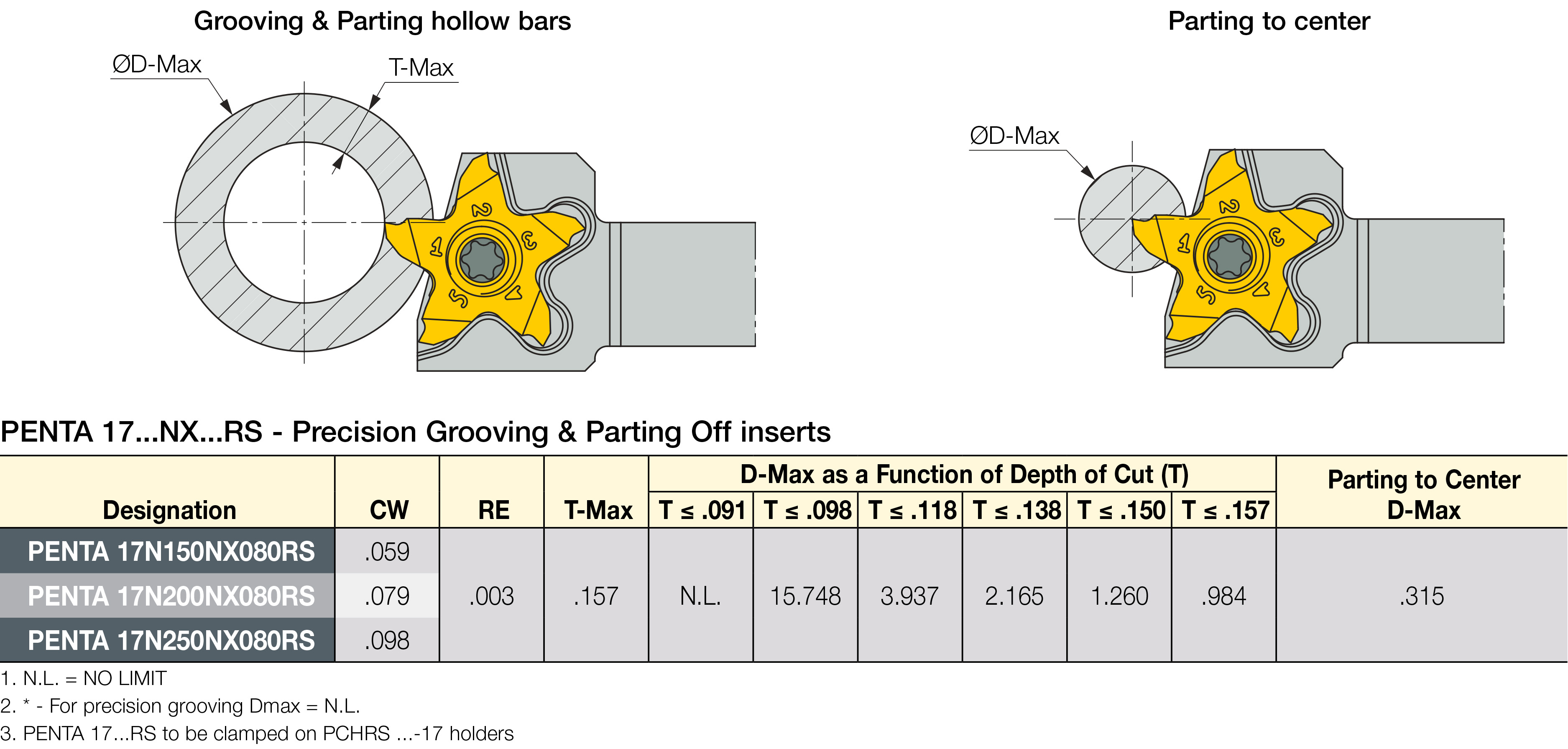

| Remarks | For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.012
