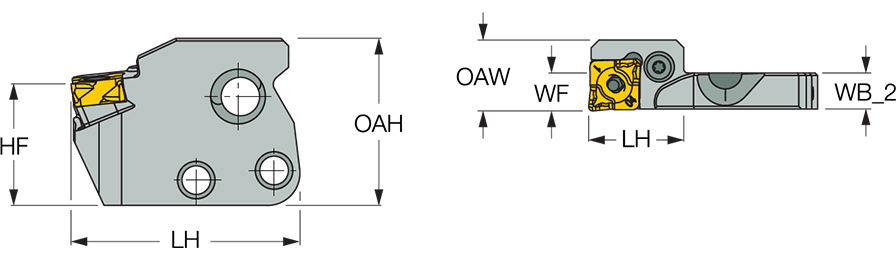

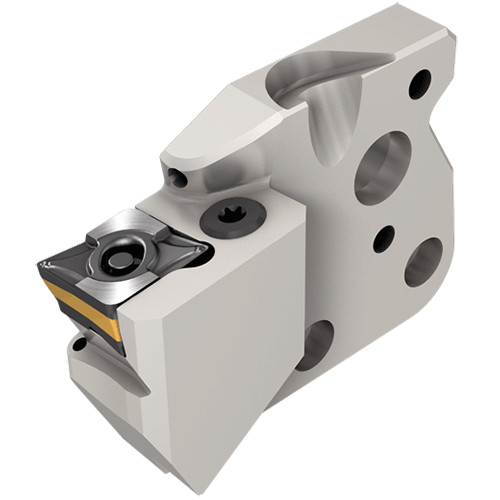

PCLXL-09X-PAD-JHP
Turning Toolholder; 1.78″ OAL × 0.736″ LH ; Left Hand ; Steel
| Overall Length (OAL) | 1.78″ | Application | | Ext. 80° Diamond 95° Approach | |
| Head Length (LH) | 0.736″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Width (WF) | 0.295″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Inscribed Circle Diameter (IC) | 0.368″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Tool Type | Square Shank Turning Tools |
| Master Insert Identification (MIID) | CXMG 0904 | Measurement Type | Inch |
Product Features
| Family Description | Lever Lock Adapter with High-Pressure Coolant carrying CXMG 80° Rhombic Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
98
