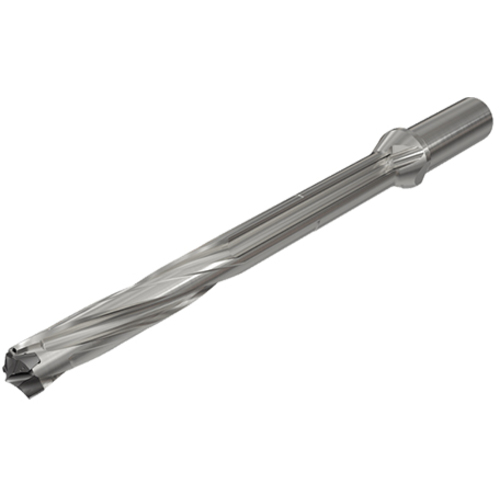

D3N 0827-827-100R-10D

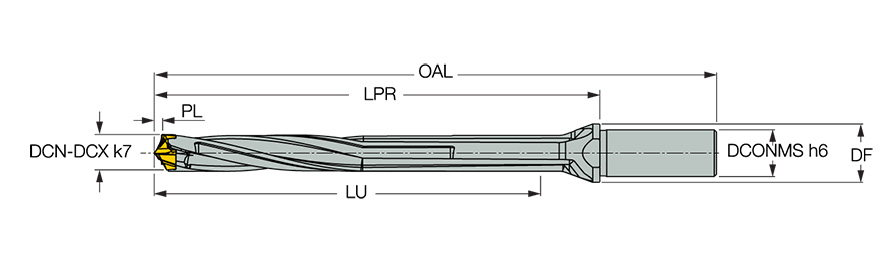

Drill; 0.827″ Dia. × 0.827″ Min. Dia. × 0.866″ Max. Dia. × 1″ Shank Dia. × 12.04″ OAL × 8.447″ LU
| Cutting Diameter (DC) | 0.827″ | Overall Length (OAL) | 12.04″ |
| Usable Length (LU) | 8.447″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Master Insert Identification (MIID) | H3P 210-IQ |
| Insert Seat Size Code (SSC) | 21 | Point Length (PL) | 0.179″ |
| Cutting Diameter Minimum (DCN) | 0.827″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.866″ | Flange Diameter (DF) | 1-1/4″ |
| Protruding Length (LPR) | 9.84″ | Decimal Equivalent | 0.827″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 10xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
576
