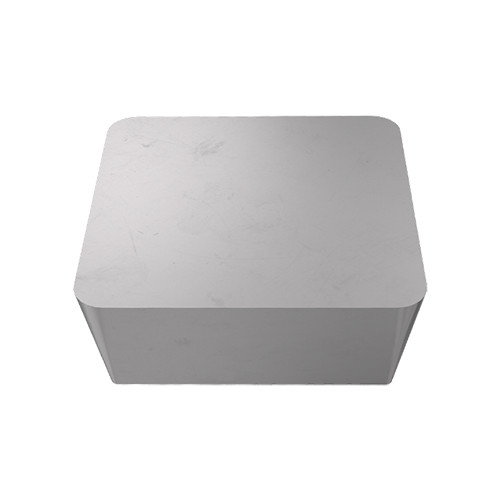

SPG 422 T0420 IN18
| Applicable Material | | Cast Iron | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | | Min D.O.C. | 0.008″ |
| Insert Style | SPG | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 422 | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Ceramic | Measurement Type | Inch |
| Grade | IN18 | Body Material | Carbide |
Product Features
| Family Description | Positive square ceramic inserts for machining cast iron and hardened steel | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
4.1
