| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH8015 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |

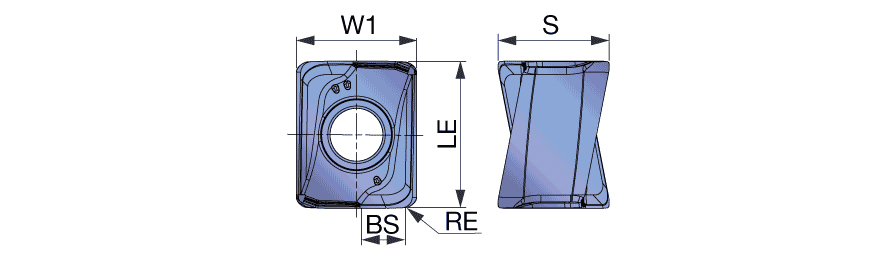

| Corner Radius (RE) | 0.063″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.354″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.354″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.354″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.319″ | Cutting Edge Effective Length (LE) | 0.433″ |
| Wiper Edge Length (BS) | 0.012″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features

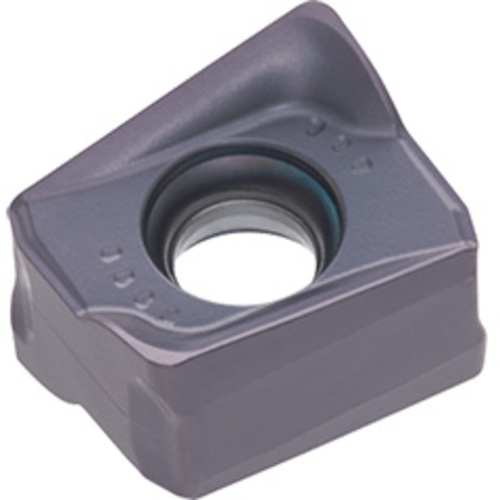

| Family Description | Double-sided insert with 4 cutting edges, for general purpose. Innovative multi-functional geometry enables 3D milling applications. | Country of Origin | JAPAN |
