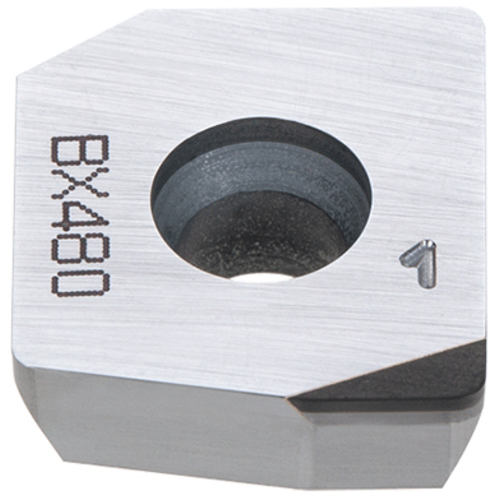

WSGW130508PDLSR BX480
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | BX480 |
| Application | | Shoulder Milling | | Cutting Edge Material | PCBN |

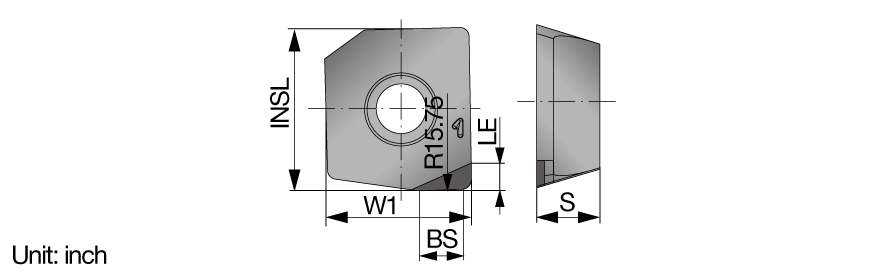

| Insert Length (INSL) | 0.563″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0315″ | Number of Cutting Edges | 1 |
| Insert Width (W1) | 0.504″ | Cutting Edge Effective Length (LE) | 0.079″ |
| Insert Thickness (S) | 0.22″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.146″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | CBN insert for cast iron machining. Wiper insert. | Country of Origin | JAPAN |
| Remarks | CBN inserts listed above can not be reground. |
Shipping Info
Package Weight
0.000
