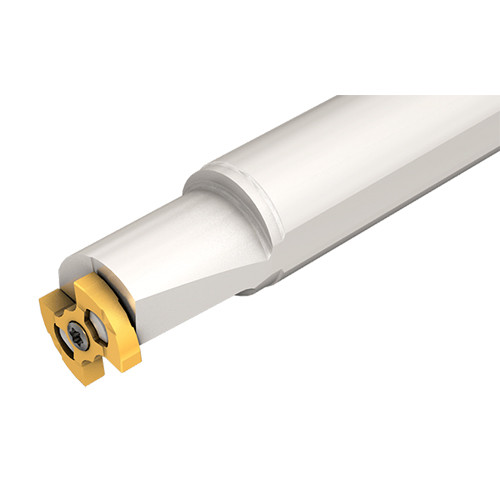

GQHINL 15.9C-16.5-20
Grooving Toolholder ; 5.118″ OAL ; 5/8″ Shank Dia. ; 0.039″ CW Min. ; 0.118″ CW Max. ; 0.098″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.039″ | Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Width Maximum (CWX) | 0.118″ | Application | | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 0.098″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.65″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.417″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.118″ |
Product Features
| Family Description | Internal grooving and turning bars on which inserts with 4 cutting edges are mounted | Country of Origin | Israel |
Shipping Info
Package Weight
197
