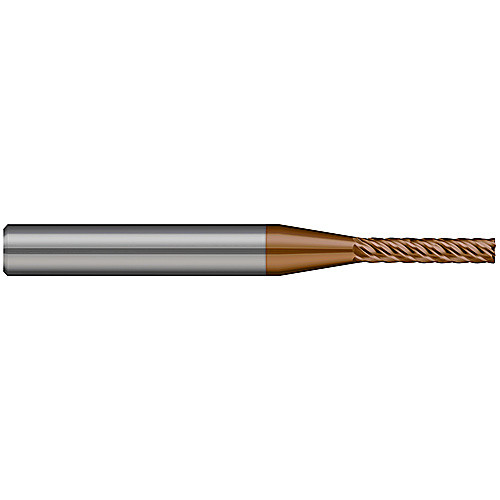

1/4X1-1/4 LOC TI-NANO
Corner Radius End Mill; 1/4″ Dia. × 1-1/4″ LOC × 1/4″ Shank Dia. × 4″ OAL ; 6 FL ; Carbide ; TiN ; Series Variable Pitch End Mills for Titanium - Corner Radius
| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 0.005″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | Material Specific End Mills |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Length Group | 5D |
| Overall Length (OAL) | 4″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiN | Series/List # | Variable Pitch End Mills for Titanium - Corner Radius |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
