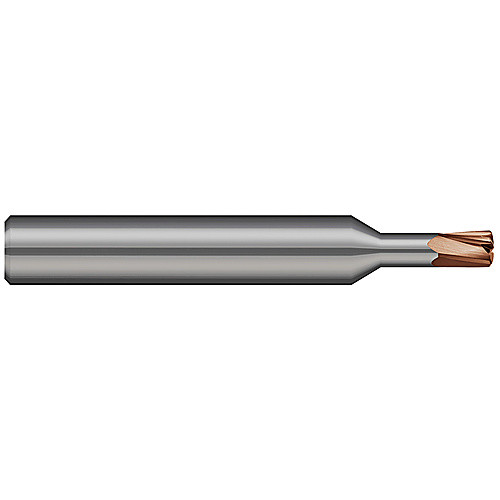

4F 3/16X 3/16 LOC TI-NANO
SQ End Mill; 3/16″ Dia. × 3/16″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 4 FL ; 9/16″ LBS ; Carbide ; TiN ; Series High Feed End Mills for High Temp Alloys
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.165″ |
| Depth of Cut Maximum (APMX) | 3/16″ | Neck Length (LN) | 3/8″ |
| Overall Length (OAL) | 2″ | Tool Type | Material Specific End Mills |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875″ |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | High Feed End Mills for High Temp Alloys |
| End Shape | Feed Mill |
Product Features
| Country of Origin | USA |
