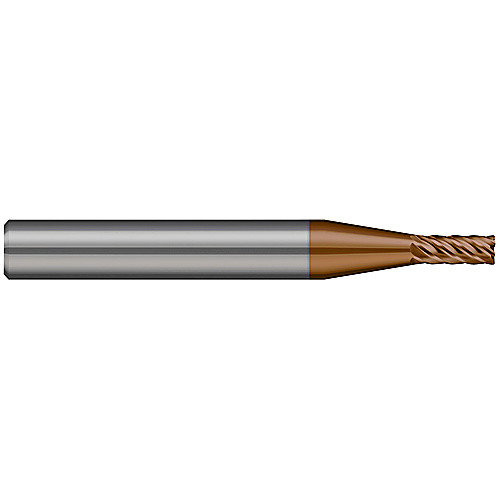

1/16X.1860″ LOC TI-NANO
SQ End Mill; 1/16″ Dia. × 0.186″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.01″ RE ; 0.01″ RE ; 6 FL ; Carbide ; TiN ; Series Variable Pitch End Mills for Titanium - Corner Radius
| Cutting Diameter (DC) | 1/16″ | Corner Radius (RE) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | Material Specific End Mills |
| Depth of Cut Maximum (APMX) | 0.186″ | Length Group | 3D |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.062″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiN | Series/List # | Variable Pitch End Mills for Titanium - Corner Radius |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.066
