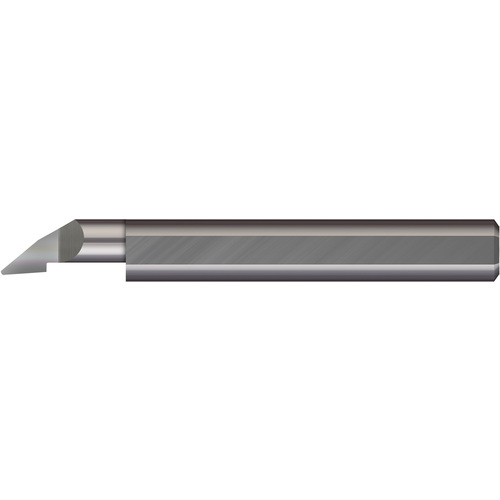

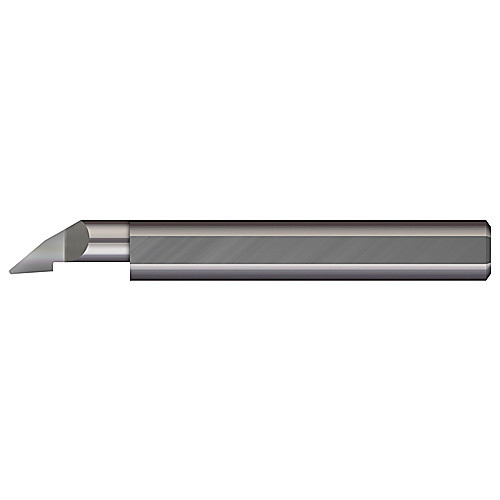

PF5-080250 ANGLE PROFILE
Tool; 1/8″ Shank Dia. × 0.08″ CW × 1/4″ Max Depth × 1-1/2″ OAL ; Carbide ; Right Hand ; Uncoated
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Coating | Uncoated |
| Cutting Width (CW) | 0.08″ | Style | Radius |
| Cutting Depth Maximum (CDX) | 1/4″ | Minimum Bore Diameter (DMIN) | 0.09″ |
| Overall Length (OAL) | 1-1/2″ | Cutting Length | 1/4″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.015
