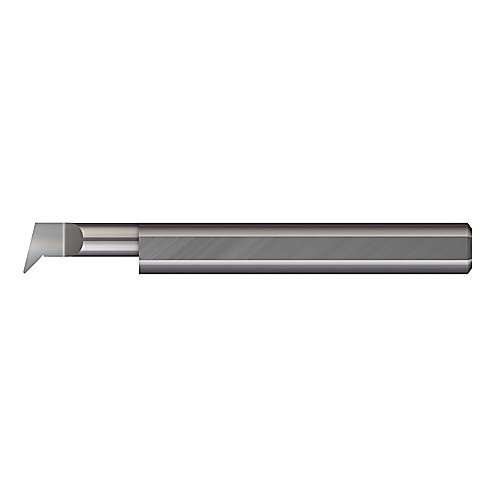

PA2-080300 ANGLE PROFILE
Tool; 1/8″ Shank Dia. × 0.08″ CW × 0.3″ Max Depth × 1-1/2″ OAL × 0.002″ Corner Radius ; Carbide ; Right Hand ; Uncoated
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Coating | Uncoated |
| Corner Radius (RE) | 0.002″ | Style | Radius |
| Cutting Width (CW) | 0.08″ | Minimum Bore Diameter (DMIN) | 0.09″ |
| Cutting Depth Maximum (CDX) | 0.3″ | Cutting Length | 0.3″ |
| Overall Length (OAL) | 1-1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.015
