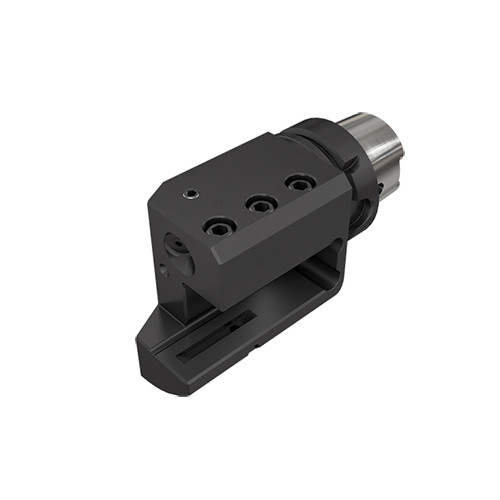

HSK A63WH ASHR25-1 HPMC

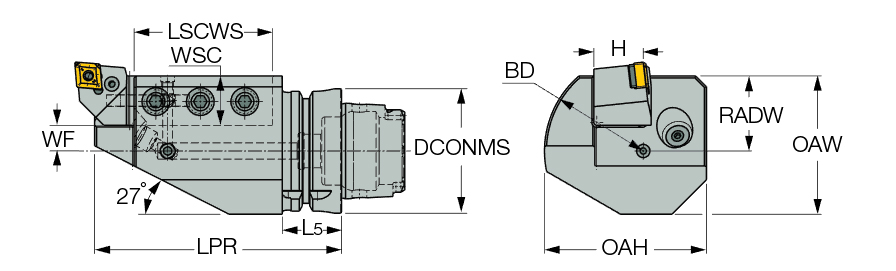

| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK -T (ISO 12164-3) |
| Clamping Length Workpiece Side (LSCWS) | 70 mm | Measurement Type | Metric |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Body Diameter (BD) | 100 mm | Overall Height (OAH) | 82 mm |
| Body Length (LB) | 30 mm | Overall Width (OAW) | 70 mm |
Product Features
| Family Description | Holders with HSK exchangeable shanks for external square shank tools with high-pressure multi-connection. | Country of Origin | Italy |
Shipping Info
Package Weight
7.057
