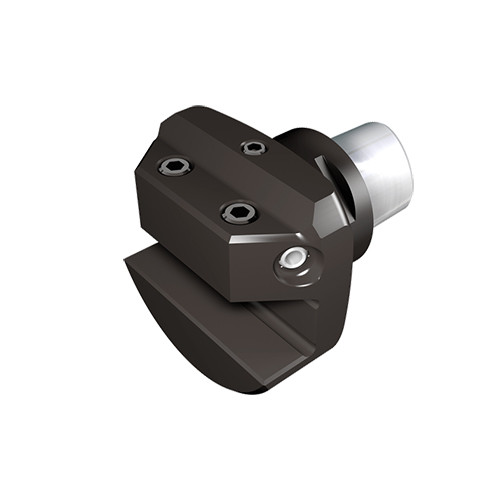

C8 ASHA 32
Adapter; 80 mm Shank Dia. ; 80 Shank Size ; 85 mm LPR ; 53 mm Body Length ; 133 mm OAL

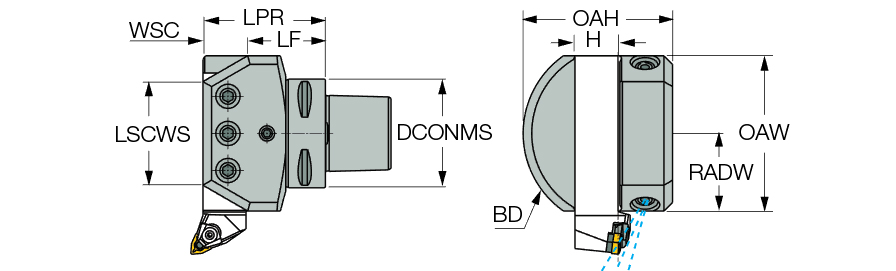

| Protruding Length (LPR) | 85 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 80 mm | Weight of Item (WT) | 4.69 Kg |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Diameter (BD) | 142 mm | Overall Height (OAH) | 95 mm |
| Body Length (LB) | 53 mm | Overall Length (OAL) | 133 mm |
| Shank Size (SS) | 80 | Overall Width (OAW) | 110 mm |
Product Features
| Family Description | Perpendicular holders with CAMFIX (ISO 26623-1 standard) shanks for external square shank tools. | Country of Origin | Italy |
Shipping Info
Package Weight
11.279
