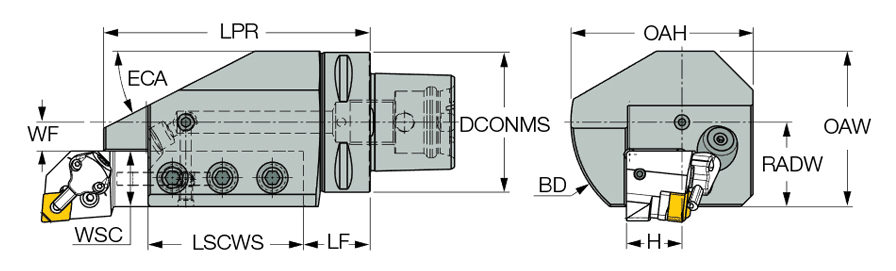

| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 70 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Overall Height (OAH) | 82 mm |
| Body Diameter (BD) | 100 mm | Overall Length (OAL) | 158 mm |
| Shank Size (SS) | 63 | Overall Width (OAW) | 70 mm |
Product Features

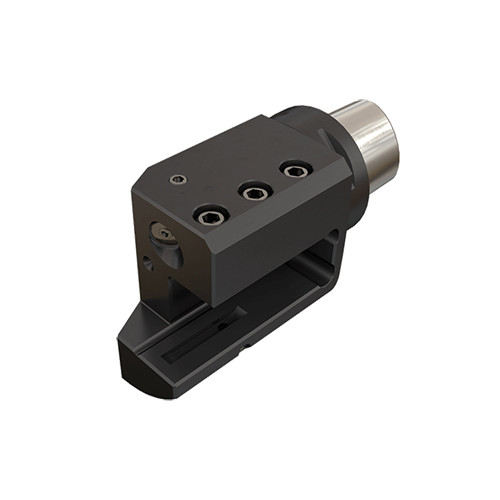

| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools with high-pressure multi-connection. | Country of Origin | Israel |
Shipping Info
Package Weight
7.242
