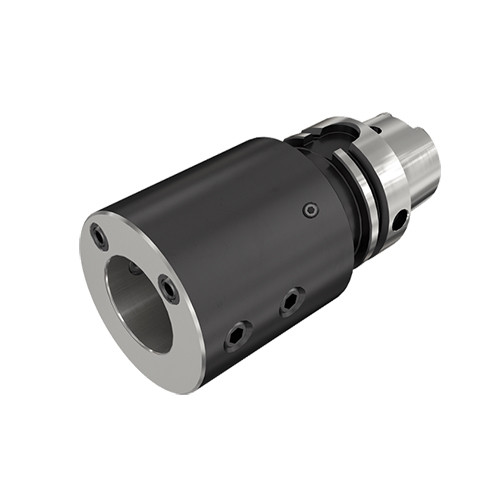

HSK A63TM ABB 40
Adapter; 63 mm Shank Dia. ; 40 mm Hole Dia. ; 63 Shank Size ; 120 mm LPR ; 75 mm Body Dia. ; 42 mm Body Length ; 152 mm OAL

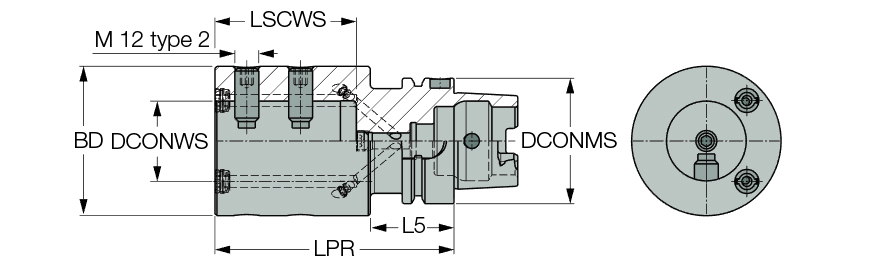

| Protruding Length (LPR) | 120 mm | Tool Type | HSK -T (ISO 12164-3) |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Weight of Item (WT) | 2.55 Kg |
| Clamping Length Workpiece Side (LSCWS) | 71 mm | Body Material | Steel |
| Body Diameter (BD) | 75 mm | Overall Length (OAL) | 152 mm |
| Body Length (LB) | 42 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 63 |
Product Features
| Family Description | Adapters with HSK exchangeable shanks for boring bars with reduction sleeves. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info |
Shipping Info
Package Weight
6.552
