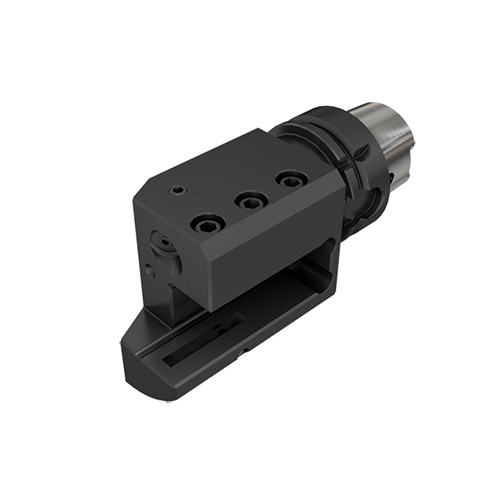

HSK A63TM ASHR 25 1 HPMC

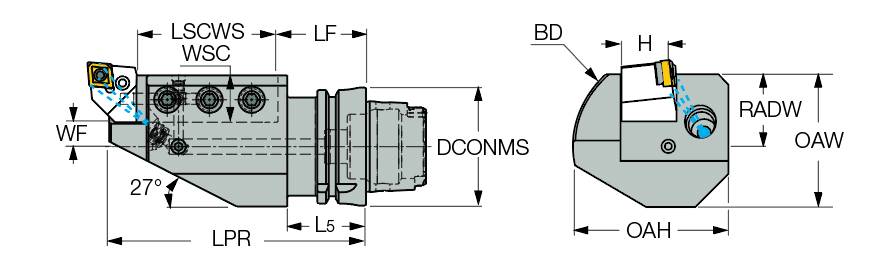

Adapter; 63 mm Shank Dia. ; 63 Shank Size ; 137 mm LPR ; 42 mm Body Length ; 157 mm OAL
| Protruding Length (LPR) | 137 mm | Tool Type | HSK -T (ISO 12164-3) |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 70 mm | Weight of Item (WT) | 3.4 Kg |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Overall Height (OAH) | 82 mm |
| Body Diameter (BD) | 100 mm | Overall Length (OAL) | 157 mm |
| Body Length (LB) | 42 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 63 | Overall Width (OAW) | 70 mm |
Product Features
| Family Description | Square shank tool adapters with HSK exchangeable shanks for multi-tasking machines with high-pressure coolant channels. | Country of Origin | Italy |

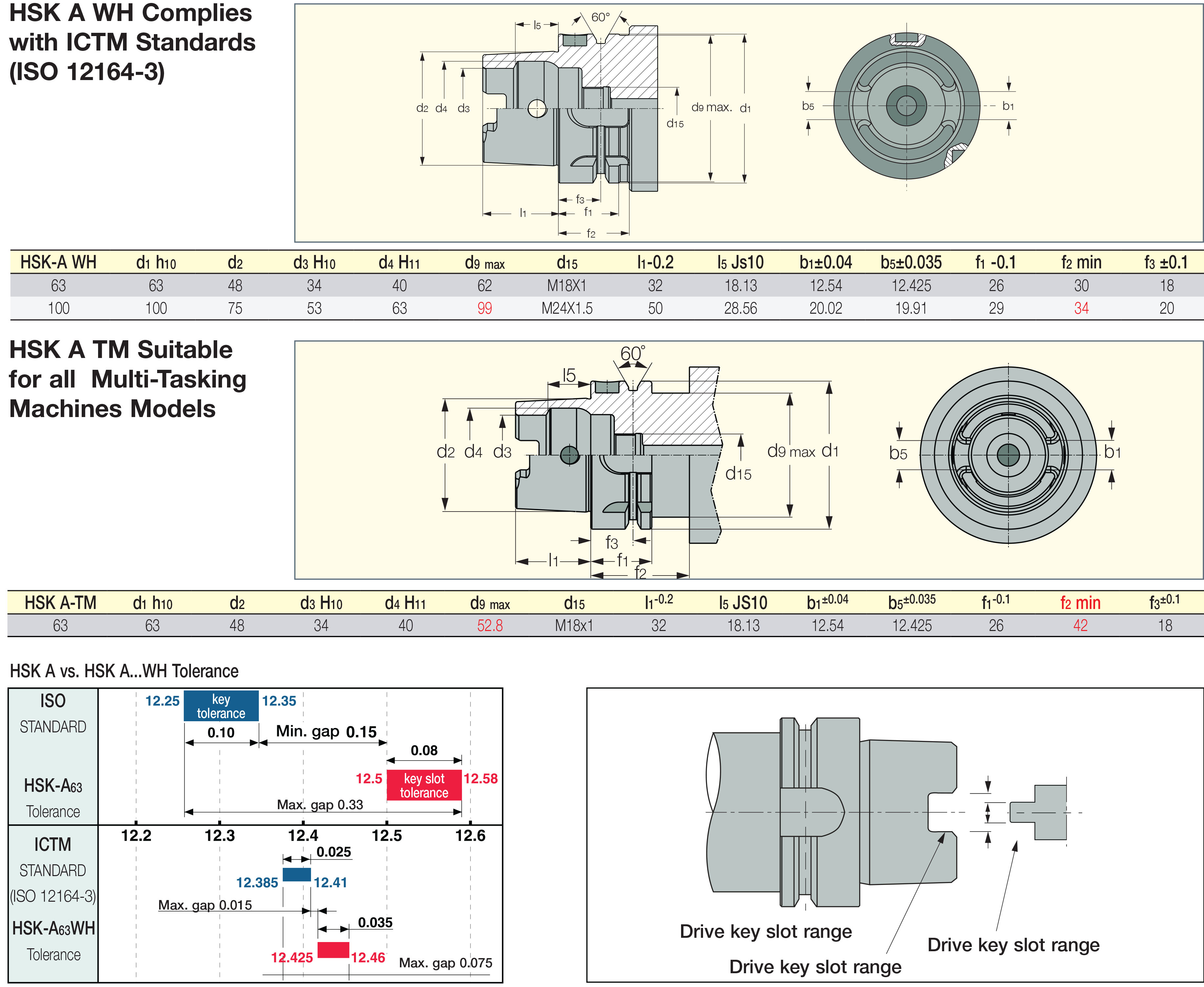

| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info |
Shipping Info
Package Weight
7.507
Related Documentation
Coolant Nozzle Adjustment Instructions: 1- Open the nut by turning it approximately three-quarters of a turn counter clockwise. 2- Adjust the coolant nozzle eye so that it will direct thecoolant to the area of the cutting edge. 3- Close the nut by turning it approximately three-quartersof a turn clockwise. 4- The special (WRENCH NOZZLE HP M12) key should be used.
