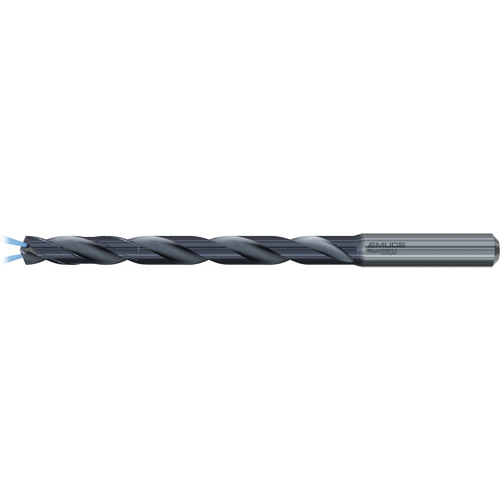

Solid Carbide Drill; 19/32″ Dia. × 16 mm Shank Dia. × 209 mm OAL ; 135 Degrees ; 8xD ; TiAlN-T63
SC Drill; 19/32″ Dia. × 16 mm Shank Dia. × 209 mm OAL ; 135 Degrees ; 8xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 19/32″ | Tool Type | High Penetration Rate Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 19/32″ | Measurement Type | Inch |
| Decimal Equivalent | 0.5938″ | Series/List # | MultiDRILL |
| Length Group | 8xD | Usable Length (LU) | 160 mm |
| Coating | TiAlN | Length Chip Flute (LCF) | 160 mm |
| Applicable Material | | Universal Materials | | Overall Length (OAL) | 209 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Feature | • High penetration rate carbide drill with double margin flute design. • Unique web construction. • Sub-micro grain carbide. • Creates short consistent chip forms which enables higher penetration rates and accurate hole location. |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | HA |
| Shank Standard | DIN 6535 | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.77
