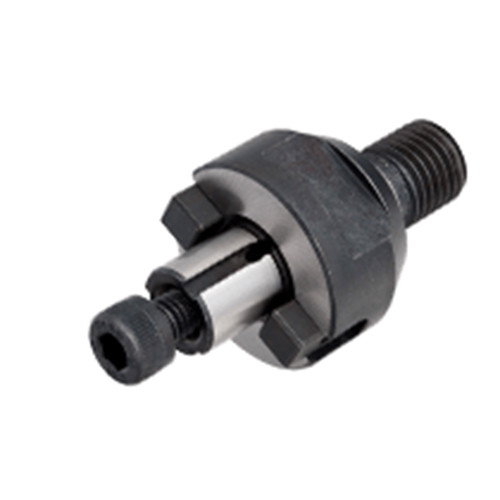

CAB M16 SEM 16 C
Adapter; 16 mm Shank Dia. ; 23 mm LPR ; 38 mm Body Dia. ; 17 mm Body Length

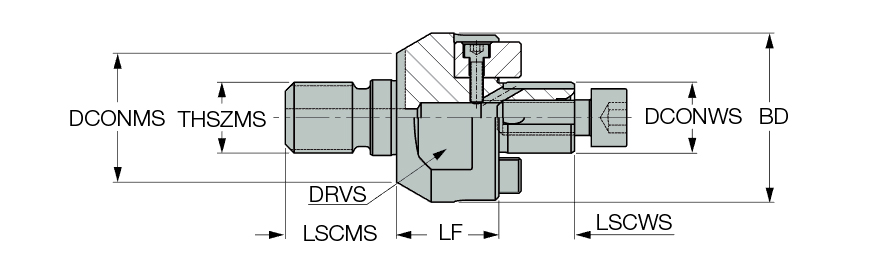

| Protruding Length (LPR) | 23 mm | Body Length (LB) | 17 mm |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Weight of Item (WT) | 0.1 Kg |
| Clamping Length Workpiece Side (LSCWS) | 17 mm | Body Material | Steel |
| Body Diameter (BD) | 38 mm | Body Diameter_2 (BD_2) | 29 mm |
Product Features
| Family Description | FLEXFIT shell mill holder adaptation with coolant holes. | Country of Origin | Italy |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.573
