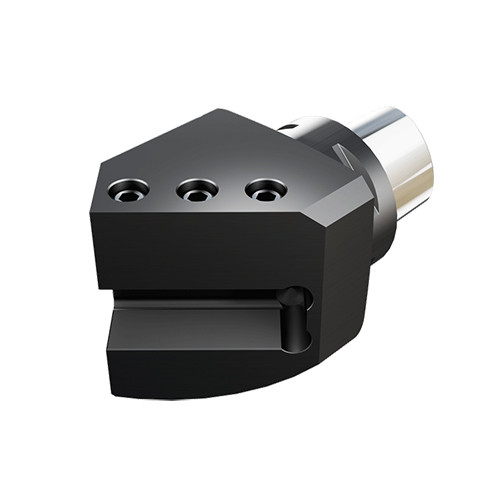

C8 ASHL 32-45
Adapter; 80 mm Shank Dia. ; 80 Shank Size ; 140 mm LPR ; 188 mm OAL

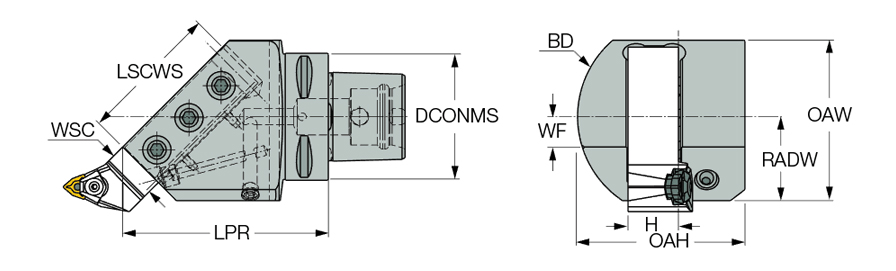

| Protruding Length (LPR) | 140 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 100 mm | Weight of Item (WT) | 7.38 Kg |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Diameter (BD) | 140 mm | Overall Height (OAH) | 110 mm |
| Shank Size (SS) | 80 | Overall Length (OAL) | 188 mm |
| Coolant Supply Property (CSP) | Through Hole | Overall Width (OAW) | 110 mm |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) shanks, carrying square shank tools for 45° mounting on turn-mill machines. | Country of Origin | Israel |
Shipping Info
Package Weight
16.951
