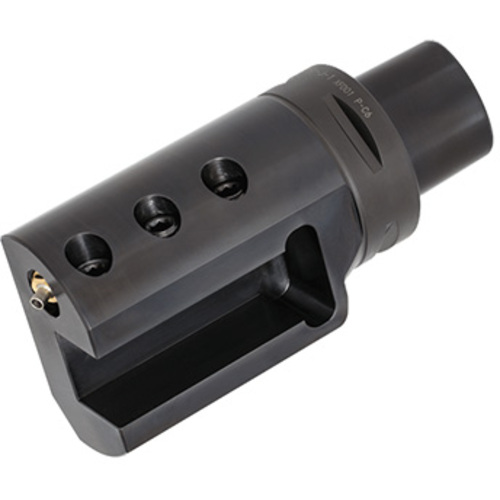

C6ASHR251-J
Adapter; 63 mm Shank Dia. ; C6 Shank Size ; 90 mm Body Dia.

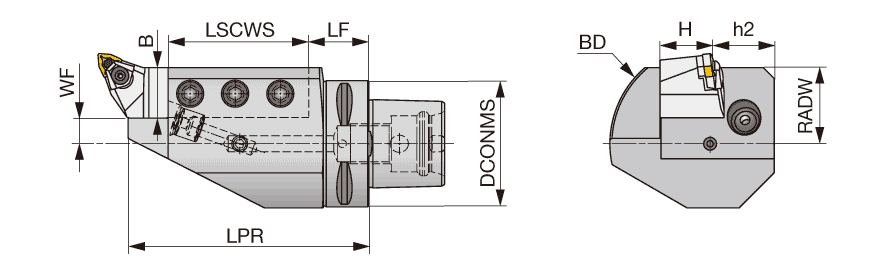

| Connection Diameter Machine Side (DCONMS) | 63 mm | Shank Size (SS) | C6 |
| Clamping Length Workpiece Side (LSCWS) | 82 mm | Application | | Face contact interface | |
| Shank Width (B) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 25 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 90 mm | Measurement Type | Metric |
| Functional Length (LF) | 38 mm | Body Material | Steel |
| Functional Width (WF) | 4.5 mm |
Product Features
| Family Description | TungCap Adapter for Square Shank toolholder | Country of Origin | Italy |
| Remarks | Regular shank should be shortened. Applicable for 7 MPa coolant |
Shipping Info
Package Weight
0
