ERP D050A075-04-C.75-06

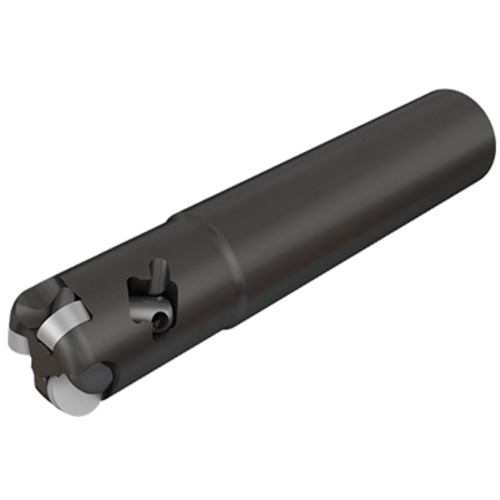

Indexable End Mill; 3/4″ Dia. × 0.059″ LOC × 3/4″ Shank Dia. × 3″ OAL ; Round Shank

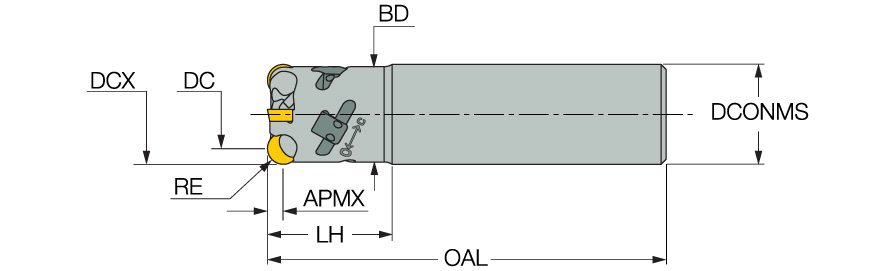

| Cutting Diameter (DC/DCX) | 3/4″ | Master Insert Identification (MIID) | RPG 21.5 |
| Cutting Diameter (DC) | 1/2″ | Head Length (LH) | 1-1/4″ |
| Cutting Item Count (CICT) | 4 | Body Diameter (BD) | 0.71″ |
| Depth of Cut Maximum (APMX) | 0.059″ | Corner Radius (RE) | 1/8″ |
| Overall Length (OAL) | 3″ | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Cutting Diameter Maximum (DCX) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
Product Features
| Family Description | Endmills carrying single-sided ceramic round inserts | Country of Origin | Israel |

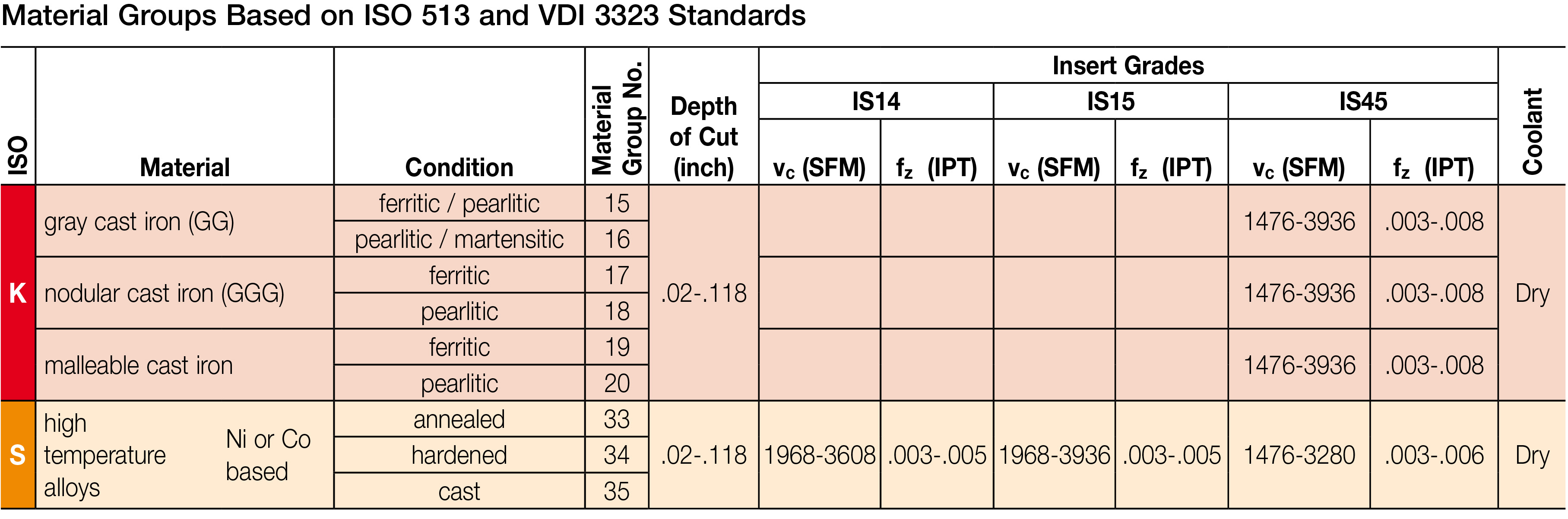

| Remarks | For adaptation, click on More Info. When milling deep pockets in high temperature alloys by use of helical interpolation, it is recommended to set the stepdown up to .04 for efficient chip evacuation. |
Shipping Info
Package Weight
169
