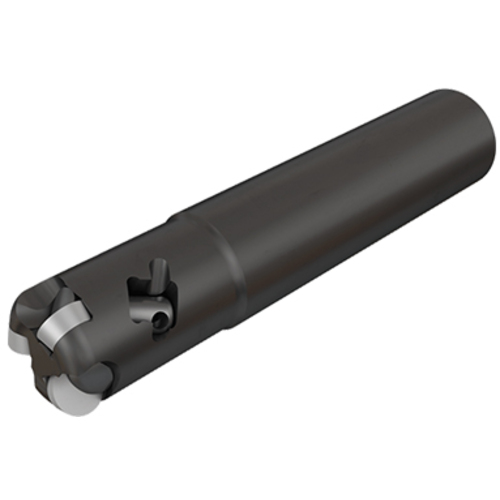

ERP D010A016-03-C16-06
Indexable End Mill; 16 mm Dia. × 1.5 mm LOC × 16 mm Shank Dia. × 80 mm OAL ; Round Shank

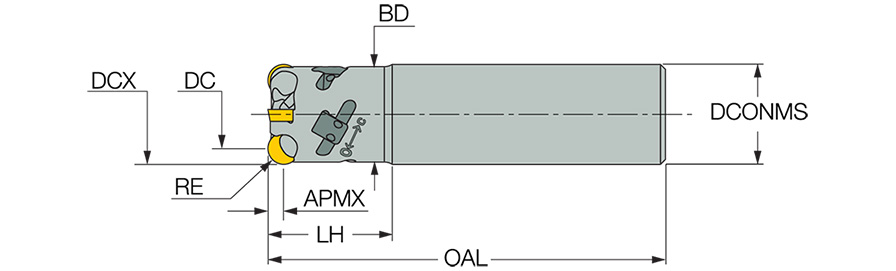

| Cutting Diameter (DC/DCX) | 16 mm | Master Insert Identification (MIID) | RPGN 06 |
| Cutting Diameter (DC) | 9.65 mm | Head Length (LH) | 25 mm |
| Cutting Item Count (CICT) | 3 | Body Diameter (BD) | 15 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm | Corner Radius (RE) | 3.18 mm |
| Overall Length (OAL) | 80 mm | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16 mm |
Product Features
| Family Description | Endmills carrying single-sided ceramic round inserts | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. When milling deep pockets in high temperature alloys by use of helical interpolation, it is recommended to set the stepdown up to 1 mm for efficient chip evacuation. |
Shipping Info
Package Weight
132
