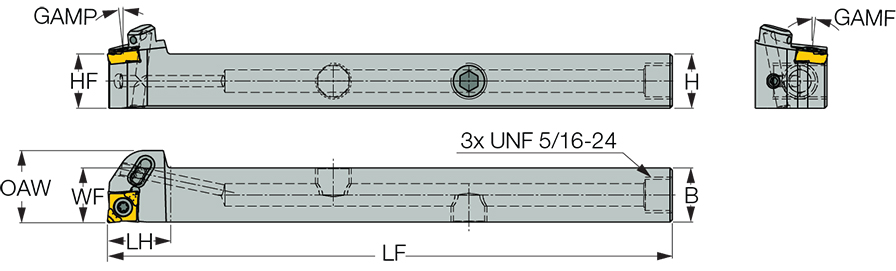

| Shank Height (H) | 1/2″ | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 1/2″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 5″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 0.551″ | Body Material | Steel |
| Functional Width (WF) | 0.63″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

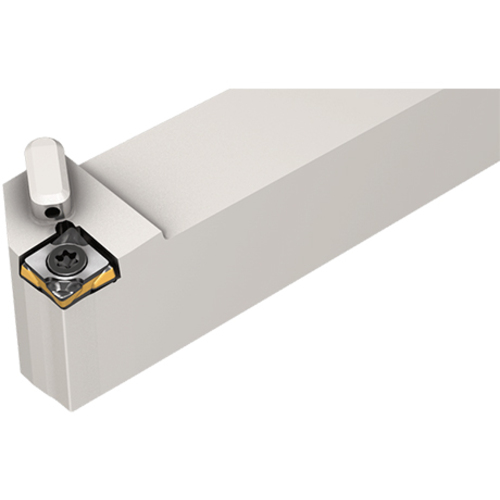

| Family Description | Screw lock tools with JETCUT coolant system carrying CXMU 80° rhombic inserts for Swiss-Type automatic lathes | Country of Origin | Israel |
Shipping Info
Package Weight
182
