TCG27-230-020 NS9530

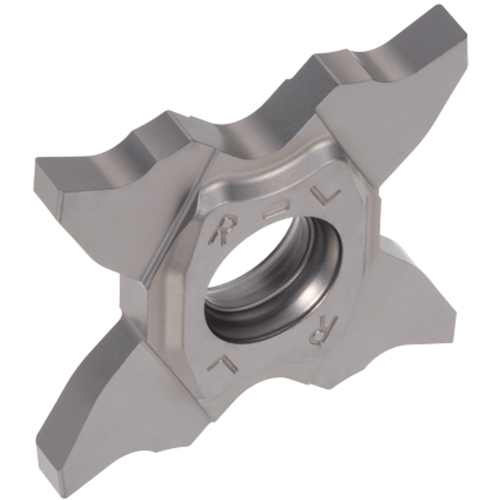

Parting Off Insert; 0.091″ CW × 0.0079″ Corner Radius ; Cermet ; Uncoated ; NS9530
| Cutting Width (CW) | 0.091″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0.0079″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Cermet | Work Piece Parting Diameter Maximum (CUTDIA) | 0.504″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Application | | Inserts | |
Product Features
| Family Description | Precision grooving and parting off insert with 4 cutting edges. | Country of Origin | Japan |

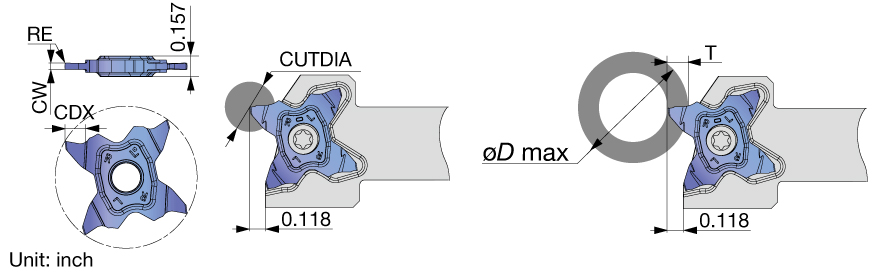

| Remarks | For the relation between groove depth (T) and max diameter (D max), click on "More Info". |
Shipping Info
Package Weight
9.4
