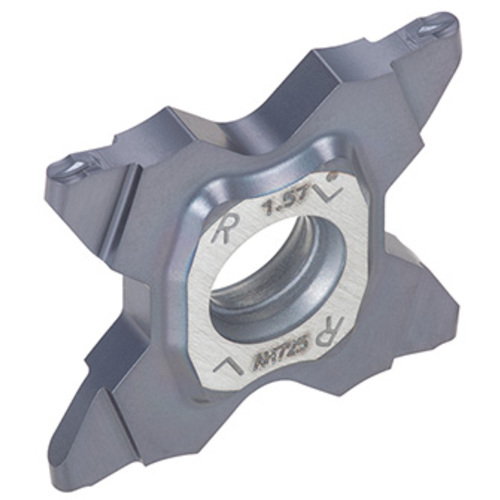

TCS27-239-120 AH6235
Parting Off Insert; 0.094″ CW × 0.0472″ Corner Radius ; Carbide ; TiAlN ; AH6235
| Cutting Width (CW) | 0.094″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0472″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.224″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH6235 | Body Material | Carbide |
| Application | | Inserts | |
Product Features
| Family Description | Precision grooving inserts with 4 cutting edges (With full radius). General purpose type. | Country of Origin | JAPAN |

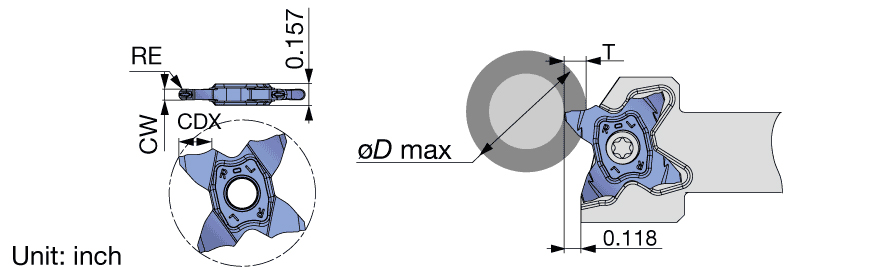

| Remarks | For the relation between groove depth (T) and max diameter (D max), click on "Product report". |
Shipping Info
Package Weight
0.000
