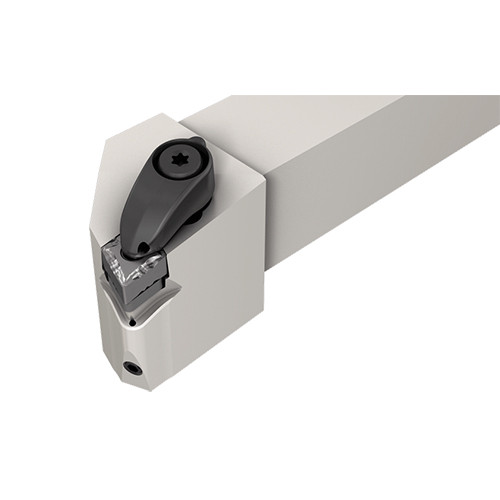

DXJNL 2020X-09-JHP-MC
Turning Toolholder; 107 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 37 mm LH ; Left Hand ; Steel

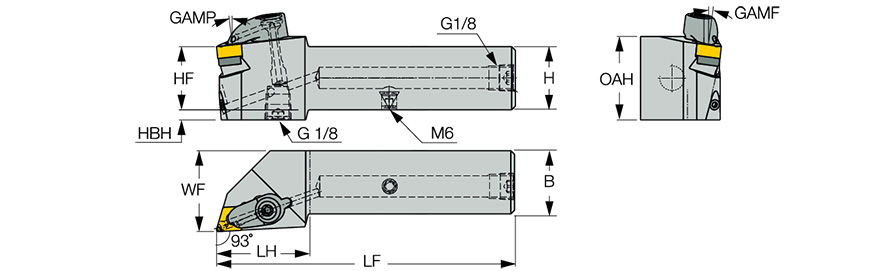

| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | XNMG 0904 |
| Shank Width (B) | 20 mm | Application | | Ext. 70° Diamond 93° Approach | |
| Overall Length (OAL) | 107 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 107 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 37 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Rigid Clamp Tools with Channels for High-Pressure Coolant Carrying 70° Rhombic Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
428
