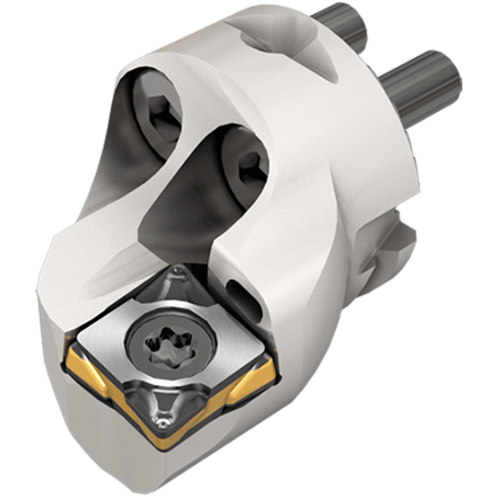

AVC-D16-SCLXL-06X
Int. Turning Tool ; 0.787″ OAL ; 0.63″ Shank Dia. ; 0.787″ LF ; 0.787″ Min Bore Dia. ; Steel

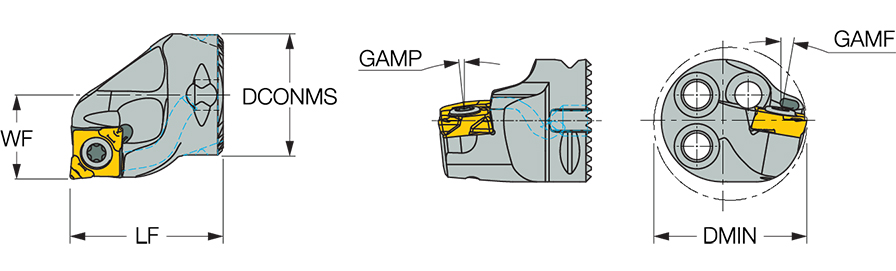

| Connection Diameter Machine Side (DCONMS) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 0.787″ | Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 0.787″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Width (WF) | 0.433″ | Rake Angle Radial (GAMF) | 10 Degrees |
| Master Insert Identification (MIID) | CXMU 060204 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.787″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Screw Lock Tools Carrying CXMU 80° Rhombic Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
39
