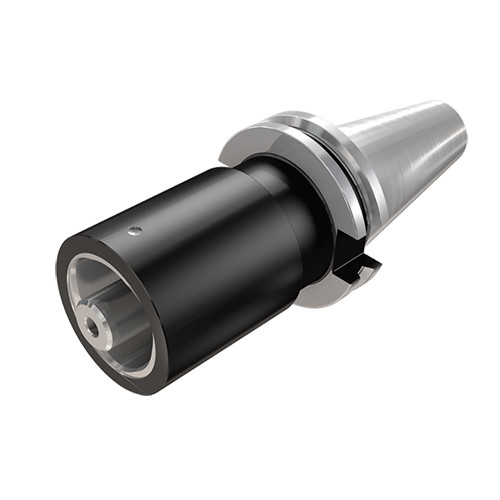

C5 AD CATI 50X40

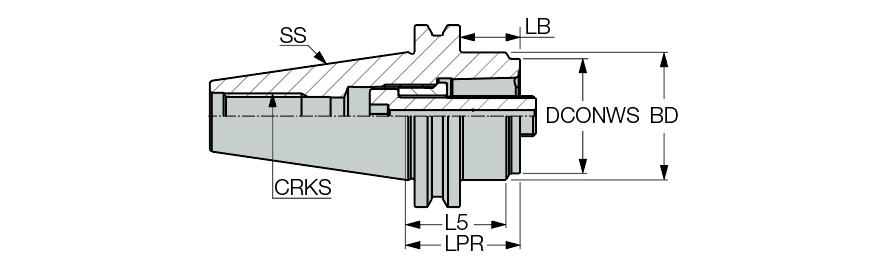

Adapter; ; 1.9685″ Hole Dia. ; 50 Shank Size ; 1.575″ LPR ; 1.378″ Body Length ; 5.575″ OAL
| Connection Diameter Workpiece Side (DCONWS) | 1.9685″ | Weight of Item (WT) | 6.62 Lbs |
| Body Diameter (BD) | 2.752″ | Body Material | Steel |
| Body Length (LB) | 1.378″ | Shank Length (LS) | 4″ |
| Shank Size (SS) | 50 | Flange Diameter (DF) | 3-7/8″ |
| Tool Type | DIN 69871 | Overall Length (OAL) | 5.575″ |
| Measurement Type | Inch | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | CAMFIX (ISO 26623-1) holders with Caterpillar AD tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
6.613
