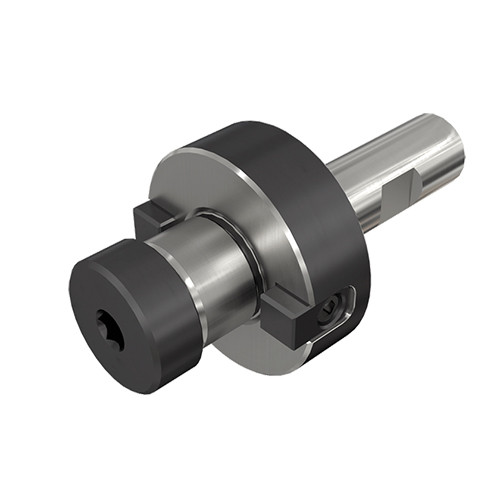

ST 3/4 SEM 1.000
Adapter; 3/4″ Shank Dia. ; 1″ Hole Dia. ; .750 Shank Size ; 0.714″ LPR ; 2-1/8″ Body Dia. ; 3.586″ OAL

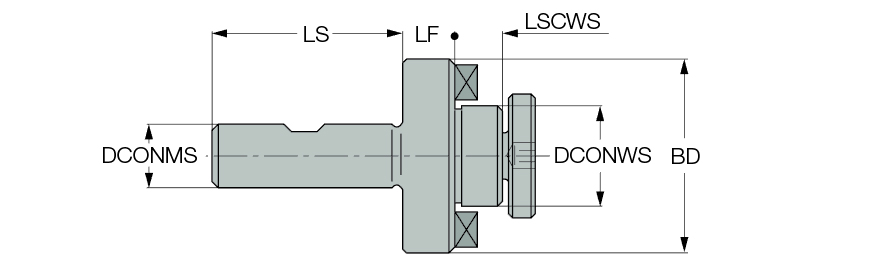

| Protruding Length (LPR) | 0.714″ | Tool Type | Cylindrical Shanks |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Weight of Item (WT) | 1.06 Lbs |
| Clamping Length Workpiece Side (LSCWS) | 0.672″ | Body Material | Steel |
| Body Diameter (BD) | 2-1/8″ | Shank Length (LS) | 2.2″ |
| Shank Size (SS) | .750 | Overall Length (OAL) | 3.586″ |
Product Features
| Family Description | ISO 3937 face mill holder with a straight shank. | Country of Origin | Israel |
Shipping Info
Package Weight
1.543
