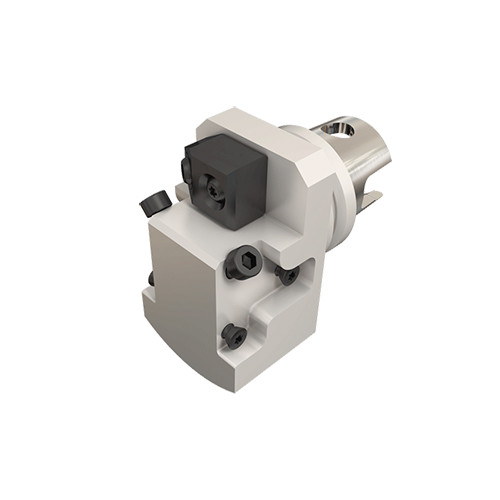

IM63 GHAD-8
Adapter; 2.48″ Shank Dia. ; 63 Shank Size ; 2.559″ LPR ; 3.937″ OAL

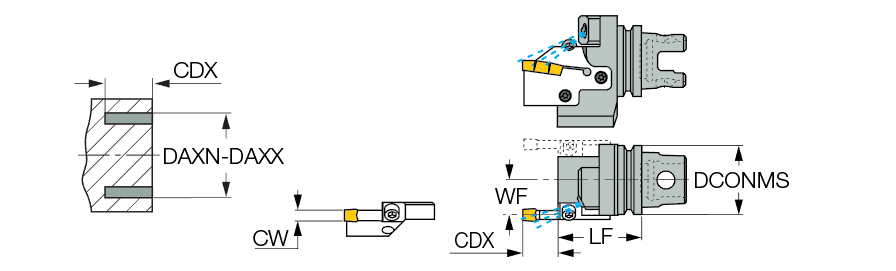

| Protruding Length (LPR) | 2.559″ | Tool Type | ISO 26622-1 (KM, IM) |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Functional Width (WF) | 0″ | Weight of Item (WT) | 4.19 Lbs |
| Shank Size (SS) | 63 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole | Overall Length (OAL) | 3.937″ |
Product Features
| Family Description | Holders with an ISO 26622-1(*) tapered shank for grooving, turning and facing adapters. | Country of Origin | Israel |
| Remarks | (*) Tools with orientation holes in the flange groove can be supplied on request |
Shipping Info
Package Weight
5.079
