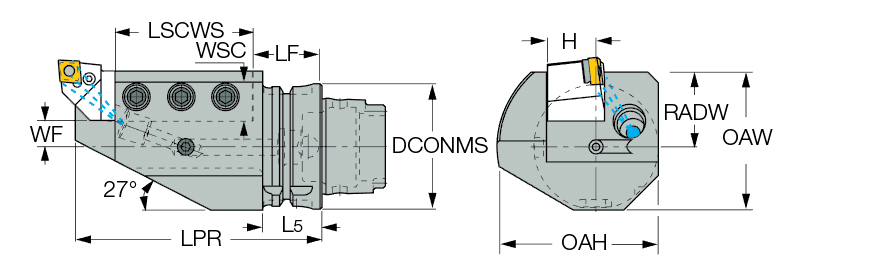

HSK A63WH-ASHL-1.000-1
Adapter; 2.48″ Shank Dia. ; 63 Shank Size ; 4.92″ LPR ; 1.181″ Body Length ; 6.18″ OAL
| Protruding Length (LPR) | 4.92″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | HSK -T (ISO 12164-3) |
| Clamping Length Workpiece Side (LSCWS) | 2.756″ | Measurement Type | Inch |
| Shank Width (B) | 1″ | Weight of Item (WT) | 6.75 Lbs |
| Shank Height (H) | 1″ | Body Material | Steel |
| Body Length (LB) | 1.181″ | Overall Height (OAH) | 3.23″ |
| Functional Width (WF) | 0.512″ | Overall Length (OAL) | 6.18″ |
| Shank Size (SS) | 63 | Overall Width (OAW) | 2.756″ |
Product Features

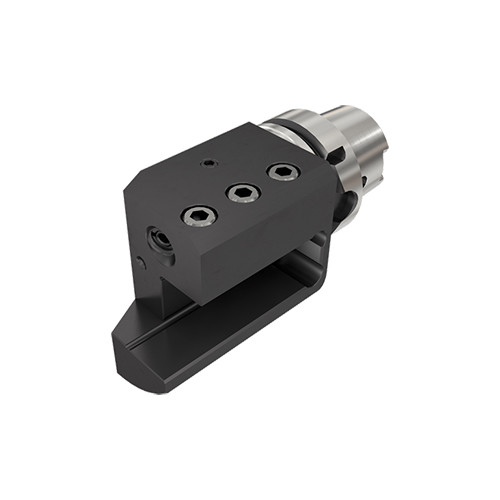

| Family Description | Square shank tool adapters with HSK exchangeable shanks, for turn-mill machines. | Country of Origin | Italy |
| Remarks | Complies with ICTM standard (ISO 12164-3) For shank dimensions, Click on More Info A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) The .750 x .750 square shanks may be locked with spacer |
Shipping Info
Package Weight
6.944
