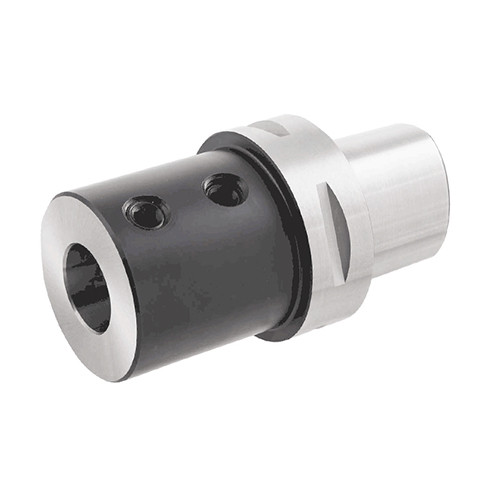

C8 ADI 20

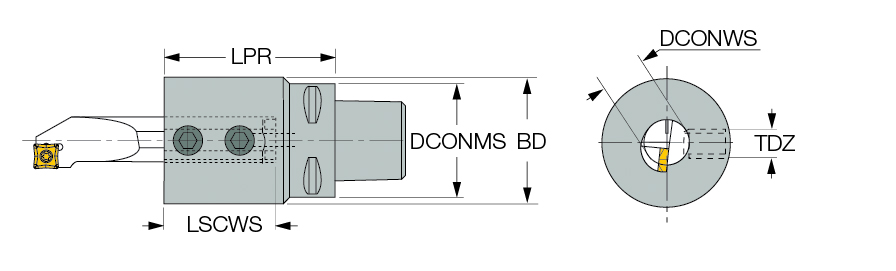

Adapter; 80 mm Shank Dia. ; 20 mm Hole Dia. ; 80 Shank Size ; 70 mm LPR ; 36 mm Body Dia. ; 118 mm OAL
| Protruding Length (LPR) | 70 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 40 mm | Weight of Item (WT) | 1.98 Kg |
| Body Diameter (BD) | 36 mm | Body Material | Steel |
| Shank Size (SS) | 80 | Overall Length (OAL) | 118 mm |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars. | Country of Origin | Israel |
| Remarks | Use the tools with AD suffix Regular tools should be shortened |
Shipping Info
Package Weight
4.605
