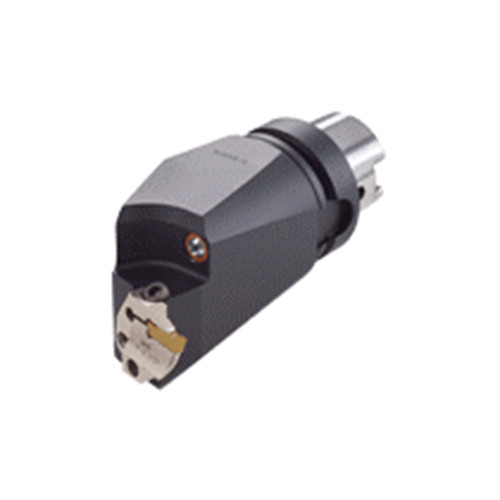

HSK A63WH MAHUR 10

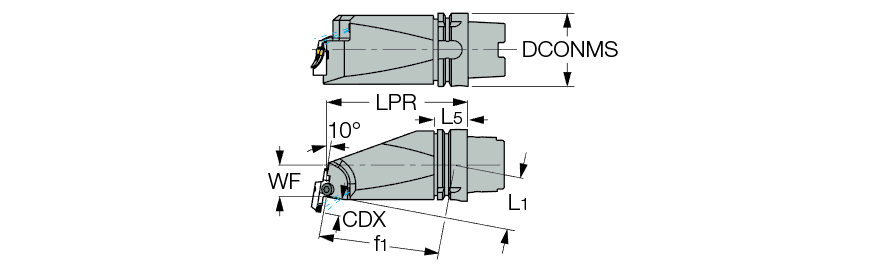

Adapter; 2.48″ Shank Dia. ; 63 Shank Size ; 5.118″ LPR ; 1.181″ Body Length ; 6.378″ OAL
| Protruding Length (LPR) | 5.118″ | Tool Type | HSK -T (ISO 12164-3) |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Body Length (LB) | 1.181″ | Weight of Item (WT) | 6.15 Lbs |
| Shank Size (SS) | 63 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole | Overall Length (OAL) | 6.378″ |
Product Features
| Family Description | Holders with HSK-T exchangeable tapered shanks for 10° mounting on mill-turn machines for MODULAR-GRIP parting, grooving, turning and facing adapters. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) Complies with ICTM standard (ISO 12164-3) |
Shipping Info
Package Weight
6.129
Related Documentation
SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
