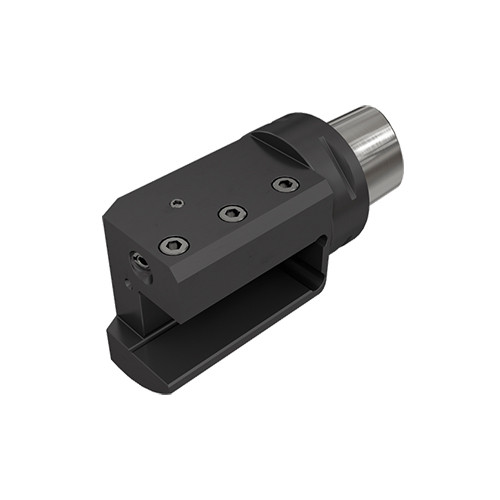

C6 ASHR 3/4X1
Adapter; 2.48″ Shank Dia. ; 63 Shank Size ; 3.937″ LPR ; 3.543″ Body Dia. ; 1.04″ Body Length ; 5.433″ OAL
| Protruding Length (LPR) | 3.937″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 2-1/2″ | Measurement Type | Inch |
| Shank Width (B) | 3/4″ | Weight of Item (WT) | 5.51 Lbs |
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Body Diameter (BD) | 3.543″ | Overall Height (OAH) | 3.07″ |
| Body Length (LB) | 1.04″ | Overall Length (OAL) | 5.433″ |
| Functional Width (WF) | 0.431″ | Overall Width (OAW) | 2.323″ |
| Shank Size (SS) | 63 |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square-shank tools. | Country of Origin | Israel |
Shipping Info
Package Weight
5.89
