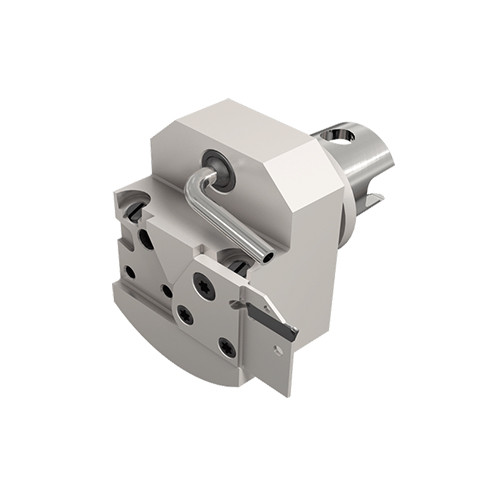

IM50 MAHPD
Adapter; 1.968″ Shank Dia. ; 50 Shank Size ; 1.772″ LPR ; 3.031″ OAL

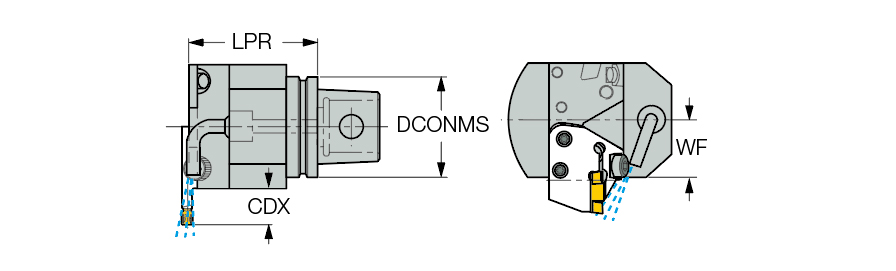

| Protruding Length (LPR) | 1.772″ | Tool Type | ISO 26622-1 (KM, IM) |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Functional Width (WF) | 0″ | Weight of Item (WT) | 2.25 Lbs |
| Shank Size (SS) | 50 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole | Overall Length (OAL) | 3.031″ |
Product Features
| Family Description | Perpendicular holders with an ISO 26622-1(*) tapered shank for MODULAR-GRIP, parting, grooving, turning and facing adapters. | Country of Origin | Israel |
| Remarks | (*) Tools with orientation holes in the flange groove can be supplied on request |
Shipping Info
Package Weight
2.555
Related Documentation
SR14-519 is screw for DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag. SR M6X20-XT is screw for CGPAD, HGPAD, TGPAD and FGPAD adapters. Supplied with the tool in the attached plastic bag. Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation.
