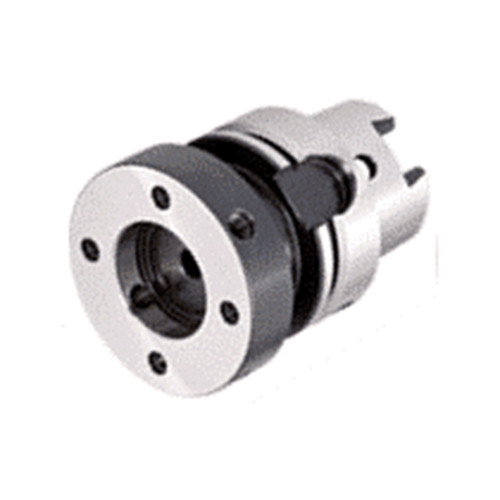

ADJ HSK A63 D70
Adapter; 2.48″ Shank Dia. ; 1.378″ Hole Dia. ; 63 Shank Size ; 2.362″ LPR ; 2.756″ Body Dia. ; 1.339″ Body Length ; 3.622″ OAL

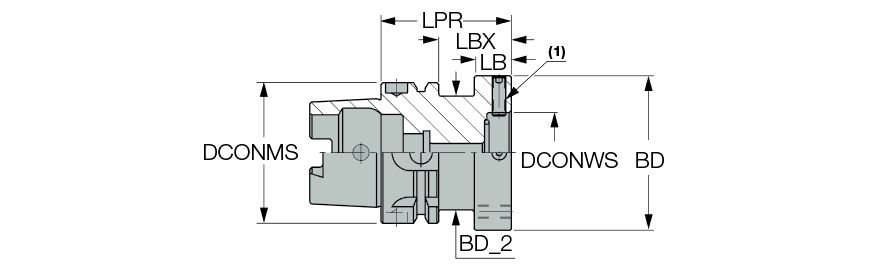

| Protruding Length (LPR) | 2.362″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Weight of Item (WT) | 2.73 Lbs |
| Connection Diameter Workpiece Side (DCONWS) | 1.378″ | Body Material | Steel |
| Body Diameter (BD) | 2.756″ | Body Diameter_2 (BD_2) | 1.811″ |
| Body Length (LB) | 1.339″ | Overall Length (OAL) | 3.622″ |
| Shank Size (SS) | 63 | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK |
Product Features
| Family Description | Center alignment shank and base with a DIN69893 form A HSK tapered shank for specially tailored tool holders. | Country of Origin | Israel |
| Remarks | (1) Use 4 mm hex key for screw adjustment. A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) For shank dimensions, Click on More Info |
Shipping Info
Package Weight
3.117
