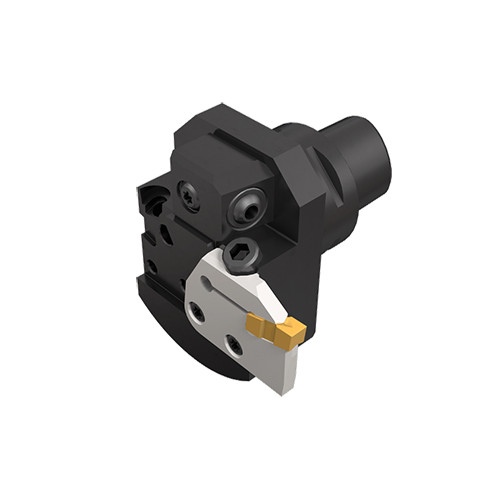

C5 MAHPD
Adapter; 1.968″ Shank Dia. ; 50 Shank Size ; 1.811″ LPR ; 3.106″ OAL

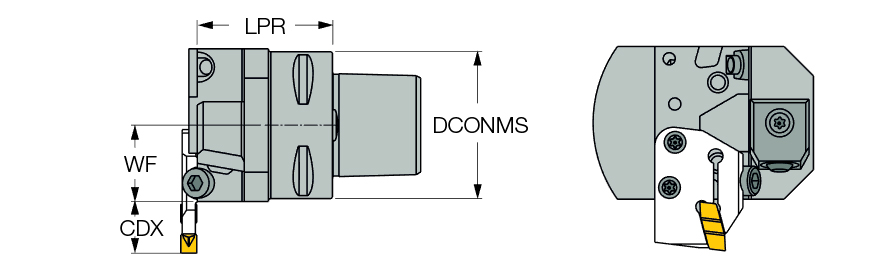

| Protruding Length (LPR) | 1.811″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Functional Width (WF) | 0″ | Weight of Item (WT) | 2.21 Lbs |
| Shank Size (SS) | 50 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole | Overall Length (OAL) | 3.106″ |
Product Features
| Family Description | Perpendicular holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying MODULAR-GRIP adapters for parting, grooving, turning and facing. | Country of Origin | Israel |
Shipping Info
Package Weight
2.579
Related Documentation

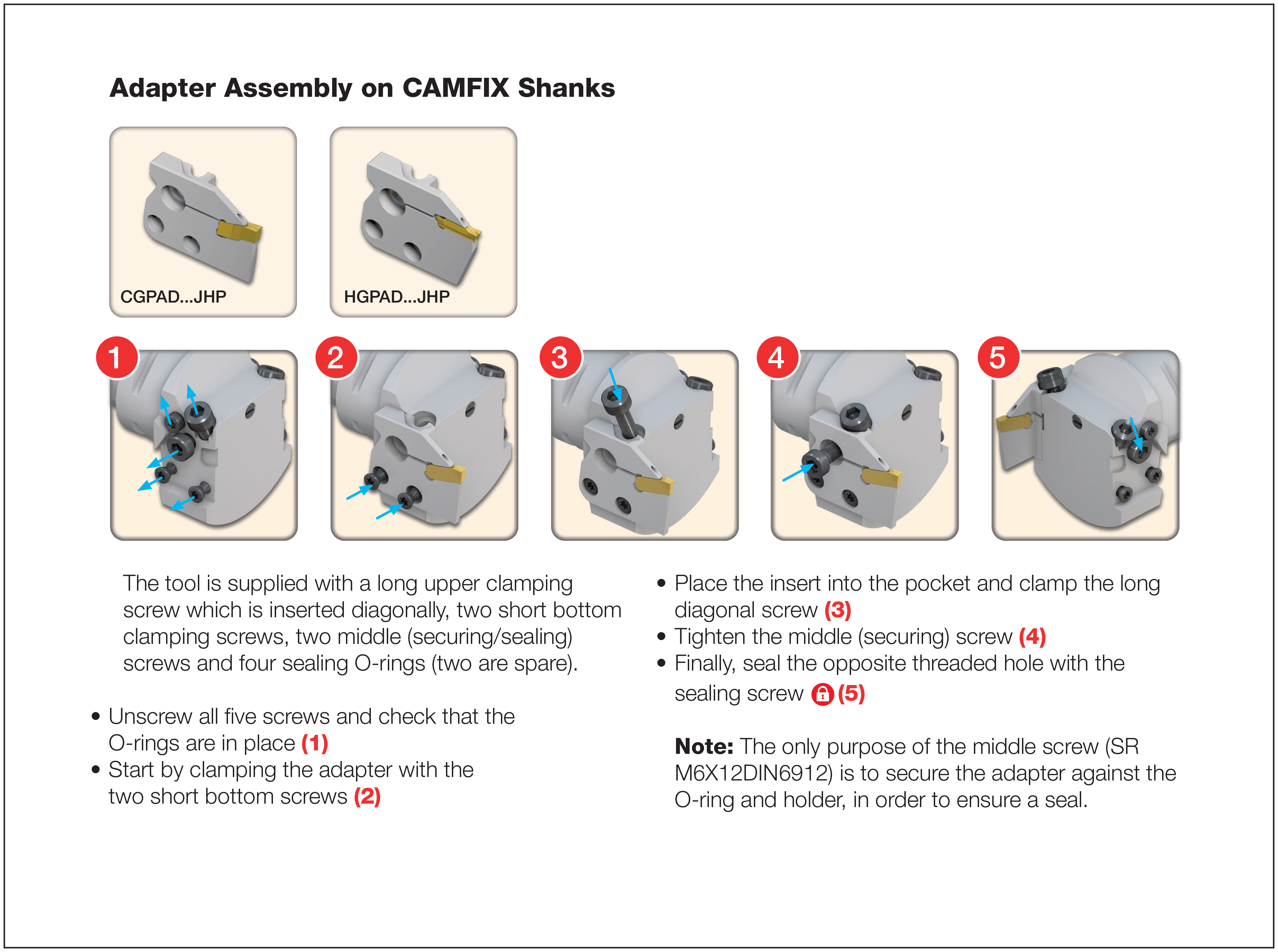

Screw SR14-519 for DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag. Screw SR M6X20-XT for CGPAD, HGPAD, TGPAD and FGPAD adapters. Used to prevent chips from entering the upper locking screw hole of adapter above. Supplied with the tools in the plastic bag.
