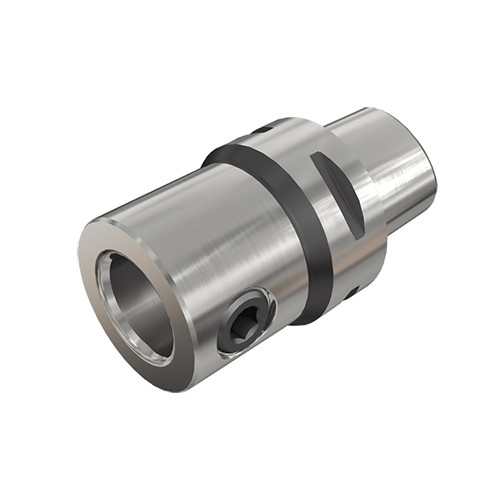

C5 CF4-S
Adapter; 1.968″ Shank Dia. ; 0.984″ Hole Dia. ; 50 Shank Size ; 2.362″ LPR ; 1.752″ Body Dia. ; 1.378″ Body Length ; 3.543″ OAL

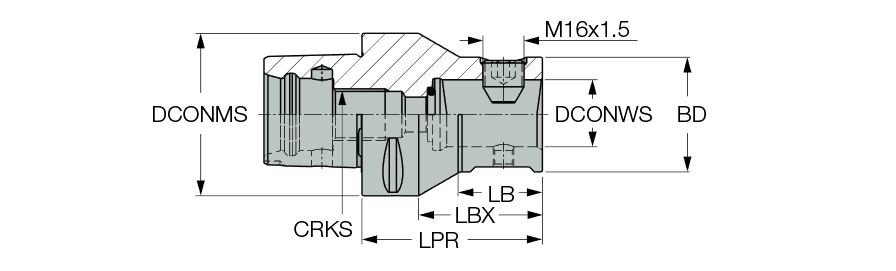

| Protruding Length (LPR) | 2.362″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 0.984″ | Weight of Item (WT) | 0.29 Lbs |
| Body Diameter (BD) | 1.752″ | Body Material | Steel |
| Body Length (LB) | 1.378″ | Connection Retention Knob Thread Size (CRKS) | M16 |
| Shank Size (SS) | 50 | Overall Length (OAL) | 3.543″ |

Product Features
| Family Description | CLICKFIT modular connections with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
2.196
