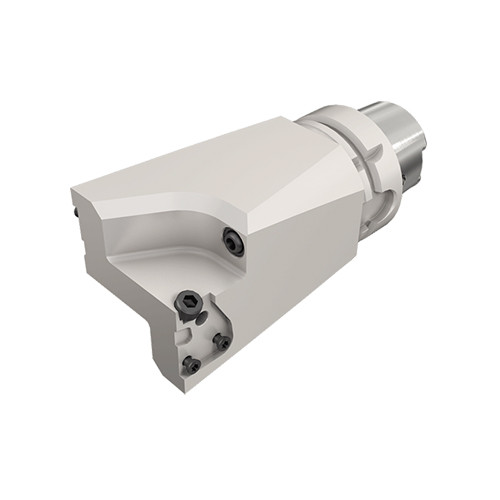

HSK A63WH MAHDOR

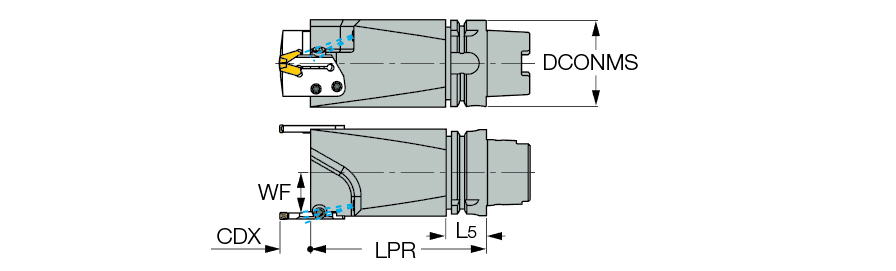

Adapter; 2.48″ Shank Dia. ; 63 Shank Size ; 5.118″ LPR ; 1.181″ Body Length ; 6.378″ OAL
| Protruding Length (LPR) | 5.118″ | Tool Type | HSK -T (ISO 12164-3) |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Body Length (LB) | 1.181″ | Weight of Item (WT) | 2.21 Lbs |
| Shank Size (SS) | 63 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole | Overall Length (OAL) | 6.378″ |
Product Features
| Family Description | Holders with HSK exchangeable tapered shanks for MODULAR-GRIP, parting, grooving, turning and facing adapters for mill-turn machines. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Complies with ICTM standard (ISO 12164-3) |
Shipping Info
Package Weight
7.822
Related Documentation
Screw SR14-519 for DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag. Screw SR M6X20-XT for CGPAD, HGPAD, TGPAD and FGPAD adapters. Used to prevent chips from entering the upper locking screw hole of adapter above. Supplied with the tools in the plastic bag.
