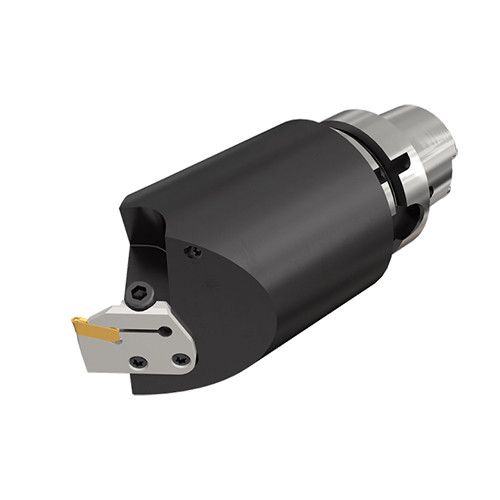

HSK A63WH MAHDR 45
Adapter; 2.48″ Shank Dia. ; 2.48 Shank Size ; 5.118″ LPR ; 2.953″ Body Dia. ; 1.181″ Body Length ; 6.378″ OAL

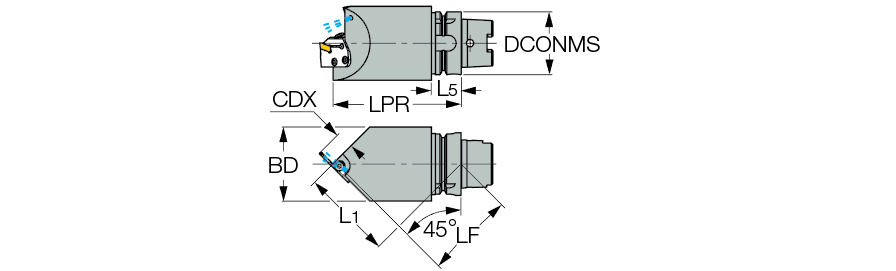

| Protruding Length (LPR) | 5.118″ | Tool Type | HSK -T (ISO 12164-3) |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Body Diameter (BD) | 2.953″ | Weight of Item (WT) | 5.51 Lbs |
| Body Length (LB) | 1.181″ | Body Material | Steel |
| Shank Size (SS) | 2.48 | Overall Length (OAL) | 6.378″ |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Holders with HSK tapered shanks for MODULAR-GRIP, parting, grooving and facing adapters for 45° mounting on turn-mill machines. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) Complies with ICTM standard (ISO 12164-3) For shank dimensions, click on More Info |
Shipping Info
Package Weight
8.091
Related Documentation
SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
